Ref. 65000799 OEM (KS-12 NVHF00028)

VHF ANTENNA 0.20MT SCOUT SCOUT

Name: VHF ANTENNA 0.20MT SCOUT SCOUT
Brand: SCOUT
SKU: 65000799
Price: 105.33 EUR
Availability: InStock

€105.33

VAT included

Available

Product details

Name

Antennes VHF
Model

KS-12
Height (mm)

200
Frequency

VHF 156-162Mhz

Ref. 65000780

VHF ANTENNA 1.50MT SCOUT SCOUT

/ SCOUT

€56.35
Ref. 65000779

VHF ANTENNA 0.90MT SCOUT SCOUT

/ SCOUT

€56.35
Ref. 65000777

VHF ANTENNA 0.22MT SCOUT SCOUT

/ SCOUT

€69.83
Ref. 65000457

ANTENA VHF PVC SLENDER 1m PACIFIC AERIALS

/ PACIFIC AERIALS

€42.69
Ref. 65000697

VHF BLACK ANTENNA 1.5MT SCOUT

/ SCOUT

€60.03
Ref. 65000456

ANTENA VHF PVC SLENDER 0,45m PACIFIC AERIALS

/ PACIFIC AERIALS

€47.27
Ref. 65000403

ANTENNA PACIFIC VHF 1m NYLON 6db PACIFIC AERIALS

/ PACIFIC AERIALS

€66.45
Ref. 65000400

ANTENNA PACIFIC VHF 1,8m NYLON 6db PACIFIC AERIALS

/ PACIFIC AERIALS

€72.22
Ref. 65000404

ANTENNA PACIFIC VHF 1,8m S.S. 6db PACIFIC AERIALS

/ PACIFIC AERIALS

€76.80
Ref. 65000788

VHF ANTENNA 0.18MT SCOUT W/SET SCOUT

/ SCOUT

€56.35
Ref. 65000402

ANTENNA PACIFIC VHF 1,8m NYLON 6db PACIFIC AERIALS

/ PACIFIC AERIALS

€60.40
Ref. 65000791

VHF BLACK 1.00MT STAINLESS SAIL SCOUT SCOUT

/ SCOUT

€58.79
Ref. 65000408

ANTENNA PACIFIC VHF 1m S.S. 6db PACIFIC AERIALS

/ PACIFIC AERIALS

€79.62
Ref. 65000455

ANTENNA VHF S.S. BASE ABATIBLE PACIFIC AERIALS

/ PACIFIC AERIALS

€65.00
Ref. 65000790

VHF ANTENNA 0.90MT SAIL SCOUT SCOUT

/ SCOUT

€58.79
Ref. 65000795

GPS ANTENNA 7CM SCOUT SCOUT

/ SCOUT

€104.12
Ref. 65000691

SCOUT WAVE TV ANTENNA SCOUT

/ SCOUT

€110.24
Ref. 65000405

ANTENNA PACIFIC VHF 2,5m S.S. 6db PACIFIC AERIALS

/ PACIFIC AERIALS

€81.24
Ref. 65000786

VHF ANTENNA 2.40MT SCOUT 6dB SCOUT

/ SCOUT

€151.88
Ref. 65000699

AM-FM FLEXIBLE ANTENNA 25Cm SCOUT

/ SCOUT

€56.35
Ref. 65000692

SCOUT CRUISER TV ANTENNA SCOUT

/ SCOUT

€177.60
Ref. 65000778

VHF BLACK 0.90MT STAINLESS SCOUT SCOUT

/ SCOUT

€63.71
Ref. 65000789

VHF ANTENNA 0.90MT SAIL SCOUT SCOUT

/ SCOUT

€62.47
Ref. 65000850

VHF ANTENNA 18cm 3dB SCOUT KM-10 W/18m C SCOUT

/ SCOUT

€89.41
Ref. 65000452

ANTENNA VHF NYLON FIXED 0.6m 6db PACIFIC AERIALS

/ PACIFIC AERIALS

€56.13

Product description

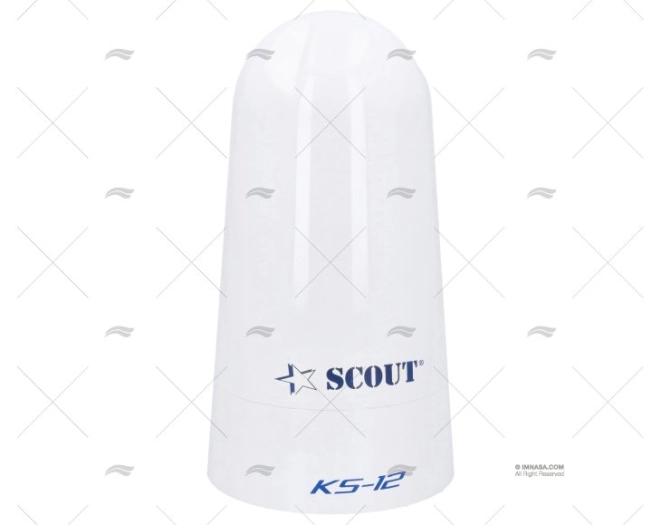

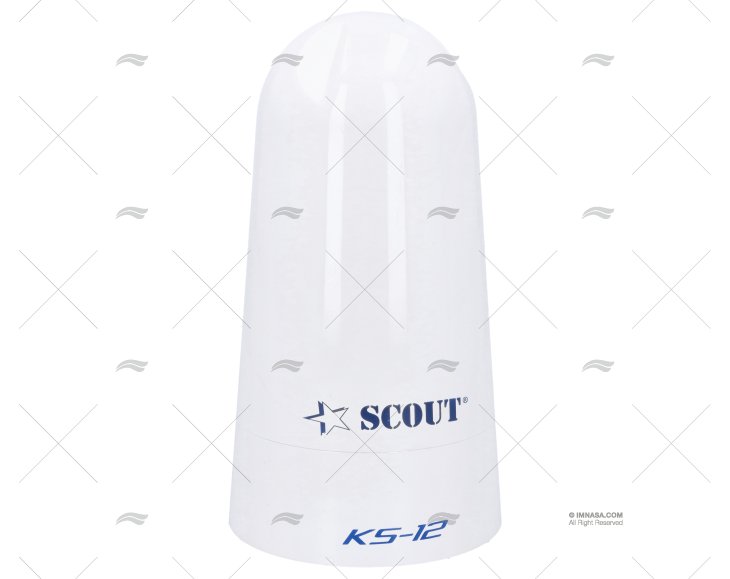

The Scout KS-12 Antenna is a compact-sized VHF antenna designed for all types of vessels. The antenna is only 10 cm in diameter and 20 cm in height, and looks identical to the Scout Wave and Sea-Connect antenna, balancing the appearance on the vessel. The waterproof housing is UV-resistant to prevent color deterioration, and it is easy to install on standard 1"x14 threaded mounts or on the deck as a permanent thru-hole mounting solution (on a non-metallic surface or housing). SO 239 connector termination. The KS-12 comes supplied with a 6m RG-58 CU MIL coaxial cable and 2 PL-259 (RG-58) male connectors to complete the onboard installation.

Data of interest

TECHNICAL DESCRIPTION

The Frequency of the KS-12 Antenna is 156-162MHz
Impedance of 50Ohm
Gain of 1dB
Standing wave ratio of <1.5:1
Maximum input power is 50W
Electrical length of 1/2 λ
Connector SO239
UV resistant (ASA)
Product height is 20cm and diameter is 11cm
Polarization Vertical
Product weight is 0.30Kg
