BOW THRUSTER SIDEPOWER IPC 12V 30kgF SLEIPNER

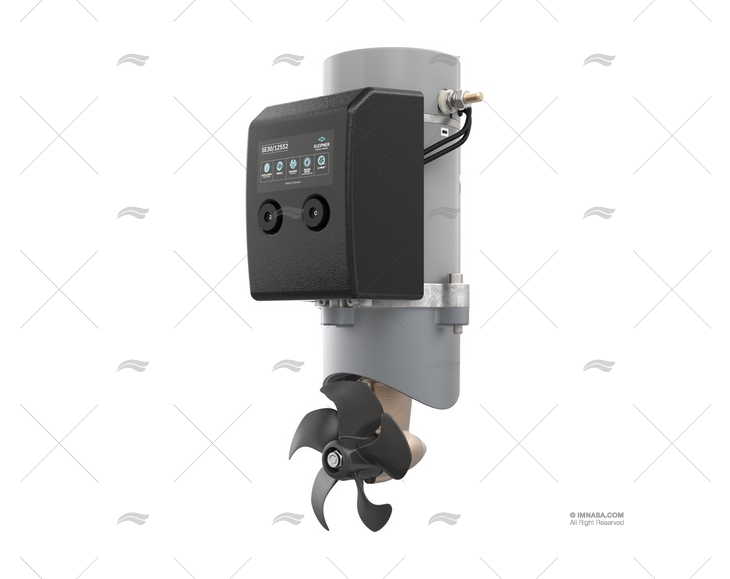

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 59111300 OEM (SE30/125S2)
BOW THRUSTER SIDEPOWER IPC 12V 30kgF SLEIPNER
€1,289.57
VAT included
Available
Product details
-
Name
Prow propeller
-
Model
SE 30/125 S
-
Horse power (HP)
2
-
Voltage (V)
12
-
Tunnel diameter (mm)
125
slide 6 to 10 of 25
-
Ref. 59111301
BOW THRUSTER SIDEPOWER IPC 12V 40kgF SLEIPNER
/ SLEIPNER
€1,395.60 -
Ref. 59111304
BOW THRUSTER SIDEPOWER IPC 12V 80kgF SLEIPNER
/ SLEIPNER
€2,426.85 -
Ref. 59111302
BOW THRUSTER SIDEPOWER IPC 12V 60kgF SLEIPNER
/ SLEIPNER
€1,789.74 -
Ref. 59111317
BOW THRUSTER SIDEPOWER SE50/140S 12V SLEIPNER
/ SLEIPNER
€1,711.07 -
Ref. 59301261
PROPELLER FOR SP30S2I/SP40S2I 5P SLEIPNER
/ SLEIPNER
€41.01
Product description
The compactly designed SE30 electric propeller offers a thrust force between 30-40 kg. With a sealed gear leg, high-performance Q propeller, and easily accessible anodes, this thruster is a powerful and easy-to-maintain addition for any vessel. Includes IPC system, Q-Prop, Sealed Drive, and Single Propeller.
Data of interest
TECHNICAL DESCRIPTION
- The electric propeller motor works at a power of 1.5kW and produces a voltage of 12V.
- The SE30/125 S thruster at 12V provides 40 kilograms of thrust and at 10.5V provides 30Kg.
- Its tunnel diameter is 125mm.
- The product has a weight of 9.5Kg.
- The operating limit is 2-3 work cycles at 20ºC.
- It has a nominal current consumption of 245A.
- The propulsion system type is single, meaning it has a single propeller with 5 blades.
- Motor height is 234mm.
- Recommended for installation on vessels between 6m and 8.5m.
