BOW THRUSTER HIDR. PARA TUNEL 250mm S EXTURN

Information Illustrative photo

Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.

Ref. 59111342 OEM (SH240/250TC-U19)

BOW THRUSTER HIDR. PARA TUNEL 250mm S EXTURN

€2,959.06
VAT included

Available

Product details

  • Name

    Prow propeller

  • Model

    SH 240/250 TC-U19

  • Horse power (HP)

    20

  • Tunnel diameter (mm)

    250

Product description

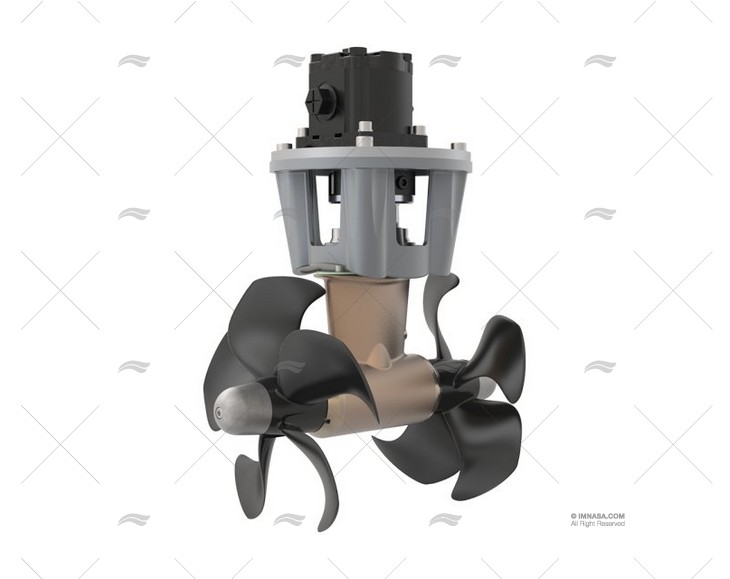

The bow hydraulic thruster model SH240/250 TC-U19 is ideal for long duty cycles, with a variable thrust of 240 kg, 19 cm³. They are designed for recreational vessels and with the reliability needed for commercial use. This hydraulic system offers the economic advantage of using multiple systems onboard from a centralized hydraulic power source. Side-Power hydraulic systems are designed to provide optimal performance and flexibility to efficiently operate all the hydraulic loads the vessel may have.

Data of interest

TECHNICAL DESCRIPTION
  • The hydraulic propeller engine operates at a power of 14.9kW.
  • The SH240 thruster provides 220-240 kilograms of thrust.
  • Its tunnel diameter is 250mm.
  • The product has a weight of 13.5Kg.
  • The SH series features a twin propulsion system, with two five-blade propellers.
  • Recommended for installation on vessels between 13-23m.

Spare parts for 59111342

  •
  • Reference
  • Description
  • Stock
  • Price
  •
    • PROPELLER 5 BLADES LH PARA SP155TC SLEIPNER
    • 59101272
    • PROPELLER 5 BLADES LH PARA SP155TC SLEIP...

    • Available

    • €236.39
      VAT included
    • WASHER ZINC FOR PROPELLE SLEIPNER
    • 59201181
    • WASHER ZINC FOR PROPELLE SLEIPNER

    • Available

    • €1.22
      VAT included
    • PROPELLER NUT FOR SP155/220 SLEIPNER
    • 59101260
    • PROPELLER NUT FOR SP155/220 SLEIPNER

    • Available

    • €10.07
      VAT included
    • ALUMINIUM ANODE SE120-130-150-170 SP125- SLEIPNER
    • 59201180
    • ALUMINIUM ANODE SE120-130-150-170 SP125-...

    • Available

    • €27.90
      VAT included
    • GASKET FOR THRUSTER SP125/155 SLEIPNER
    • 59101312
    • GASKET FOR THRUSTER SP125/155 SLEIPNER

    • Available

    • €5.35
      VAT included
    • COLLET BOW THRUSTER SP95/SP125 SLEIPNER
    • 59101440
    • COLLET BOW THRUSTER SP95/SP125 SLEIPNER

    • Available

    • €3.19
      VAT included
    • BOW THRUSTER COMPLETE TAIL SH240 SLEIPNER
    • 59130600
    • BOW THRUSTER COMPLETE TAIL SH240 SLEIPNE...

    • Available

    • €2,022.10
      VAT included
    • HYDRAULIC MOTOR  19ccm ULTRA SLEIPNER
    • 59072119
    • HYDRAULIC MOTOR 19ccm ULTRA SLEIPNER

    • Not available - (Available on request)

    • €908.63
      VAT included
    • HYDRAULIC MOTOR FOR PROPELLER SP220-11CC SLEIPNER
    • 59102100
    • HYDRAULIC MOTOR FOR PROPELLER SP220-11CC...

    • Available

    • €1,575.15
      VAT included
