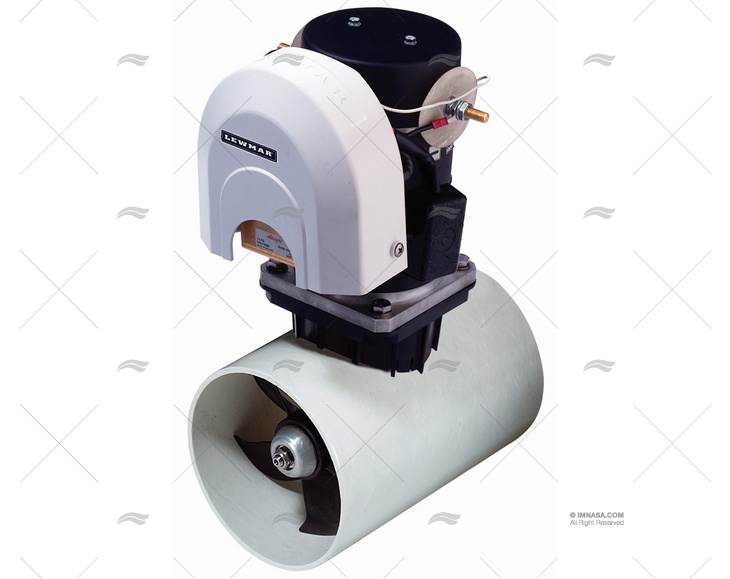

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. L590022 OEM (590022)
BOW THRUSTER LEWMAR 250TT 8.0KW 24v ALU. LEWMAR
Not available - (Available on request)
Product details
-
Name
Prow propeller
-
Model
250TT 8.0 Blue Box System, Gen 2
-
Power (W)
8000
-
Voltage (V)
24
-
Tunnel diameter (mm)
250
Related products
-
Ref. 59111301
BOW THRUSTER SIDEPOWER IPC 12V 40kgF SLEIPNER
/ SLEIPNER
€1,396.87 -
Ref. 59111304
BOW THRUSTER SIDEPOWER IPC 12V 80kgF SLEIPNER
/ SLEIPNER
€2,429.05 -
Ref. 59111317
BOW THRUSTER SIDEPOWER SE50/140S 12V SLEIPNER
/ SLEIPNER
€1,712.62 -
Ref. 59111302
BOW THRUSTER SIDEPOWER IPC 12V 60kgF SLEIPNER
/ SLEIPNER
€1,791.36 -
Ref. 59111300
BOW THRUSTER SIDEPOWER IPC 12V 30kgF SLEIPNER
/ SLEIPNER
€1,290.73 -
Ref. 59301261
PROPELLER FOR SP30S2I/SP40S2I 5P SLEIPNER
/ SLEIPNER
€41.04 -
Ref. L589351
PROPELLER 185TT LEWMAR
/ LEWMAR
€47.80 -
Ref. 59111306
BOW THRUSTER SIDEPOWER IPC 12V 100kgF SLEIPNER
/ SLEIPNER
€3,429.06 -
Ref. 59990109
PROW PROPELLER SIDEPOWER SE25 12V SLEIPNER
/ SLEIPNER
€1,214.68 -
Ref. L589551
PROPELLER SPARE 250TT LH LEWMAR
/ LEWMAR
€123.41 -
Ref. L589552
PROPELLER SPARE 250TT RH LEWMAR
/ LEWMAR
€116.95 -
Ref. L589151
PROPELLER SPARE 140TT LEWMAR
/ LEWMAR
€59.52 -
Ref. L591458
BOW THRUSTER KIT 140TT 12V LEWMAR
/ LEWMAR
€1,541.27 -
Ref. 59111307
BOW THRUSTER SIDEPOWER 24V 100kgF SLEIPNER
/ SLEIPNER
€3,429.06 -
Ref. 59111312
BOW THRUSTER SIDEPOWER IPC 24V 170kgF SLEIPNER
/ SLEIPNER
€5,226.58 -
Ref. 59990004
PROU/STERN PROPELLER EX95S 24V EXTURN
/ EXTURN
€4,770.90 -
Ref. 59990021
PROU/STERN PROPELLER SIDEPOWER SX50 12V EXTURN
/ EXTURN
€3,207.67 -
Ref. 59111305
BOW THRUSTER SIDEPOWER 24V 80kgF SLEIPNER
/ SLEIPNER
€2,429.05 -
Ref. 59111313
BOW THRUSTER SIDEPOWER IPC 24V 200kgF SLEIPNER
/ SLEIPNER
€6,990.79 -
Ref. 59990020
STERN PROPELLER SIDEPOWER SX35 12V EXTURN
/ EXTURN
€2,852.59 -
Ref. L590055
BOW THRUSTER 140TT 2.2Kw 12V KIT 2G LEWMAR
/ LEWMAR
€2,364.19 -
Ref. L591103
PROW PROPELLER 110TT 1,5kW 12V KIT LEWMAR
/ LEWMAR
€1,272.90 -
Ref. 59990029
PROU/STERN PROPELLER SIDEPOWER SX50 12V EXTURN
/ EXTURN
€3,446.50 -
Ref. 59111162
EXTERNAL STERN THRUSTER SX100/185T 13 EXTURN
/ EXTURN
€4,973.75 -
Ref. 59111303
BOW THRUSTER SIDEPOWER IPC 24V 60kgF SLEIPNER
/ SLEIPNER
€1,791.36
Product description
Data of interest
- The engine operates at a power of 8.0kW.
- Produces a voltage of 24V.
- The horsepower range is 10.8HP.
- The product weighs 46Kg.
- Has 140 Kilogram Force.
- Propellers with 250mm Tunnel Diameter.
- Has a start/peak consumption of 500A.
- The Range of Magnetothermics to install in the Propeller is 400A.
- The Propeller Type is Twin CR 5P, thus containing 2 Propellers with 5 Blades.
- The housing material is Bronze and Aluminum.
- The engine height is 405mm.
- For Heavy Boats from 15m to 16.5m.
- For Medium Boats from 16m to 17.5m.
- For Light Boats from 17.5m to 19.5m.
