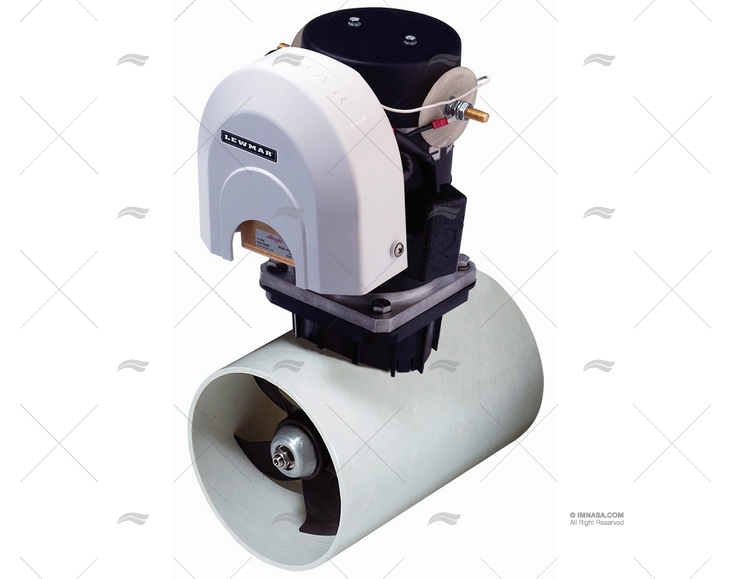

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. L590030 OEM (590030)
BOW THRUSTER LEWMAR 300TT 10.8KW 24v ALU LEWMAR
Not available - (Available on request)
Product details
-
Name
Prow propeller
-
Model
300TT 10.8 Blue Box System, Gen
-
Power (W)
10800
-
Voltage (V)
24
-
Tunnel diameter (mm)
300
Related products
-
Ref. 59111301
BOW THRUSTER SIDEPOWER IPC 12V 40kgF SLEIPNER
/ SLEIPNER
€1,396.87 -
Ref. 59111304
BOW THRUSTER SIDEPOWER IPC 12V 80kgF SLEIPNER
/ SLEIPNER
€2,429.05 -
Ref. 59111317
BOW THRUSTER SIDEPOWER SE50/140S 12V SLEIPNER
/ SLEIPNER
€1,712.62 -
Ref. 59111302
BOW THRUSTER SIDEPOWER IPC 12V 60kgF SLEIPNER
/ SLEIPNER
€1,791.36 -
Ref. 59111300
BOW THRUSTER SIDEPOWER IPC 12V 30kgF SLEIPNER
/ SLEIPNER
€1,290.73 -
Ref. 59301261
PROPELLER FOR SP30S2I/SP40S2I 5P SLEIPNER
/ SLEIPNER
€41.04 -
Ref. L589351
PROPELLER 185TT LEWMAR
/ LEWMAR
€71.52 -
Ref. 59111306
BOW THRUSTER SIDEPOWER IPC 12V 100kgF SLEIPNER
/ SLEIPNER
€3,429.06 -
Ref. 59990109
PROW PROPELLER SIDEPOWER SE25 12V SLEIPNER
/ SLEIPNER
€1,214.68 -
Ref. L589551
PROPELLER SPARE 250TT LH LEWMAR
/ LEWMAR
€123.72 -
Ref. L589552
PROPELLER SPARE 250TT RH LEWMAR
/ LEWMAR
€117.24 -
Ref. L589151
PROPELLER SPARE 140TT LEWMAR
/ LEWMAR
€59.68 -
Ref. L591458
BOW THRUSTER KIT 140TT 12V LEWMAR
/ LEWMAR
€1,541.27 -
Ref. 59111307
BOW THRUSTER SIDEPOWER 24V 100kgF SLEIPNER
/ SLEIPNER
€3,429.06 -
Ref. 59111312
BOW THRUSTER SIDEPOWER IPC 24V 170kgF SLEIPNER
/ SLEIPNER
€5,226.58 -
Ref. 59990004
PROU/STERN PROPELLER EX95S 24V EXTURN
/ EXTURN
€4,770.90 -
Ref. 59990021
PROU/STERN PROPELLER SIDEPOWER SX50 12V EXTURN
/ EXTURN
€3,207.67 -
Ref. 59111305
BOW THRUSTER SIDEPOWER 24V 80kgF SLEIPNER
/ SLEIPNER
€2,429.05 -
Ref. 59990020
STERN PROPELLER SIDEPOWER SX35 12V EXTURN
/ EXTURN
€2,852.59 -
Ref. 59111313
BOW THRUSTER SIDEPOWER IPC 24V 200kgF SLEIPNER
/ SLEIPNER
€6,990.79 -
Ref. L590055
BOW THRUSTER 140TT 2.2Kw 12V KIT 2G LEWMAR
/ LEWMAR
€2,364.19 -
Ref. L591103
PROW PROPELLER 110TT 1,5kW 12V KIT LEWMAR
/ LEWMAR
€1,272.90 -
Ref. 59990029
PROU/STERN PROPELLER SIDEPOWER SX50 12V EXTURN
/ EXTURN
€3,446.50 -
Ref. 59111162
EXTERNAL STERN THRUSTER SX100/185T 13 EXTURN
/ EXTURN
€4,973.75 -
Ref. 59111303
BOW THRUSTER SIDEPOWER IPC 24V 60kgF SLEIPNER
/ SLEIPNER
€1,791.36
Product description
Data of interest
- The engine operates at a power of 10.8 to 15kW.
- Produces voltage of 24 to 48V.
- The horsepower range is 14.5 to 20.0HP.
- The product weighs 65 to 68Kg.
- Provides thrust of 250 to 280 Kilogram Force.
- Tunnel diameter propellers of 300mm.
- Has a starting/peak consumption of 420 to 650A.
- The Circuit Breaker range for propeller installation is 400 to 500A.
- The Propeller Type is Twin CR 5P, thus contains 2 Propellers with 5 Blades.
- Housing material is Bronze and Aluminum.
- Motor height is 450mm.
- For Heavy Boat vessels from 18m to 22m.
- For Medium Boat vessels from 19.5m to 23.5m.
- For Light Boat vessels from 20.5m to 26m.
