PROW PROPELLER SIDEPOWER EB90 24V EXTURN
PROW PROPELLER SIDEPOWER EB90 24V EXTURN

Information Illustrative photo

Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.

EXTURN

Ref. 59990108 OEM (EB90/185S-24V)

PROW PROPELLER SIDEPOWER EB90 24V EXTURN

€2,283.80
VAT included

Available

Product details

  • Name

    Prow propeller

  • Model

    EB 90/185 S

  • Horse power (HP)

    8.8

  • Voltage (V)

    24

  • Tunnel diameter (mm)

    185

Related products

slide 6 to 10 of 25

Product description

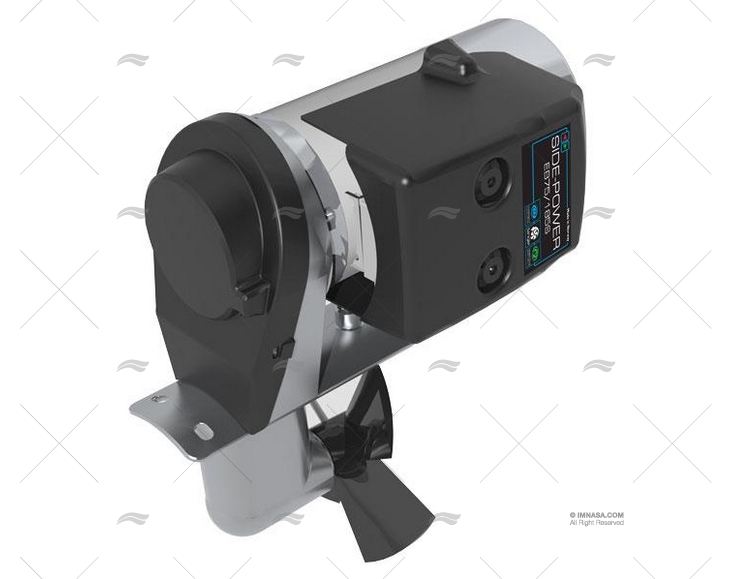

Bow thruster model EB90 of 24V, with a smaller tunnel diameter and low bow unit height. The EB series uses a bit less energy than the SE series, but it has the great advantage of construction height, making it very cost-effective. It has direct operation through a solid belt between the motor and the propeller shaft. There is no oil in the gearbox. The motor is placed parallel to it. This design is very compact and allows installation in confined spaces. The gearbox and tunnel support are a unit and are made of stainless steel AISI 316 for larger models. The EB 20 support is made of fiberglass-reinforced composite materials and is extremely compact due to the i-box case containing electronic components, including the intelligent power control IPC. The EB series is delivered installed in the tunnel support as a unit.

Data of interest

TECHNICAL DESCRIPTION
  • The EB90 propeller motor operates at a power of 6.5kW and produces a voltage of 24V.
  • Its Tunnel Diameter is 185mm.
  • The product has a weight of 17Kg.
  • The type of propulsion system is single, meaning it has 1 propeller with 4 blades.
  • The Motor Height is 310mm.
  • Recommended installation on vessels between 12 and 17m.
  • There is no oil in the gearbox.
