Product description

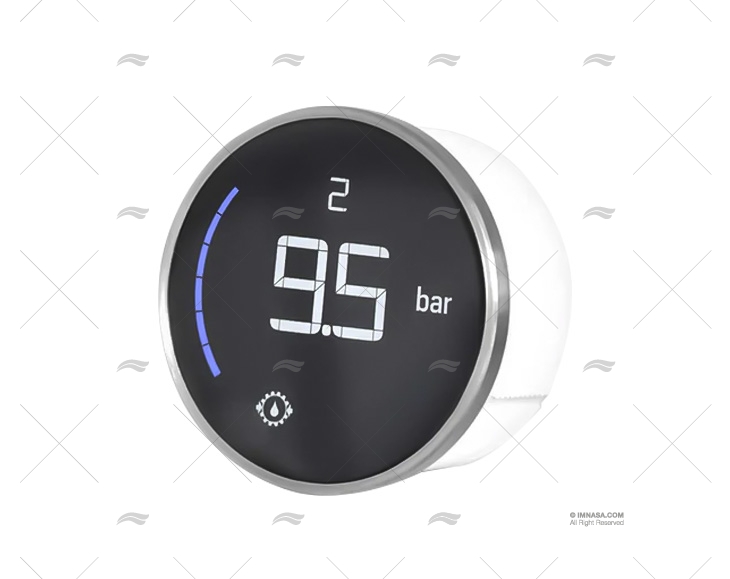

The VMH 14 by Veratron is a compact 52 mm satellite instrument designed for quick and easy integration using EasyLink with daisy chain connection technology. Compatible with up to 16 instruments per VMH Master unit, such as the new VMH 35, it offers a digital and efficient solution for displaying multiple engine data in confined spaces. With its optically bonded IBN segment screen, it's ideal for outdoor environments, providing clear and precise reading even under direct sunlight. Constructed with a brushed stainless-steel ring and mineral glass lens, it combines durability and elegance. It supports up to 8 data types: voltmeter, fuel level, trim, coolant temperature, and oil pressure and temperature (engine and transmission).

Data of interest

TECHNICAL DESCRIPTION
  • Nominal voltage 12V / 24V (from EasyLink connection) and operating voltage 9 - 32V.
  • Current consumption ≤ 15 mA (normal mode).
  • Dimensions: 60 mm (outer) 52 mm (mounting hole).
  • Brushed stainless steel front ring and mineral glass front lens.
  • IBN segment display with optical bonding.
  • EasyLink connectivity, compatible with AirWave.
  • AMP SuperSeal 1.5 connectors.
