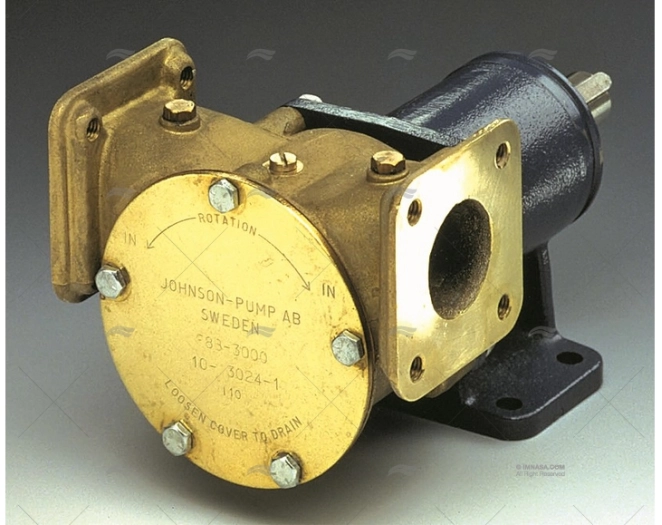

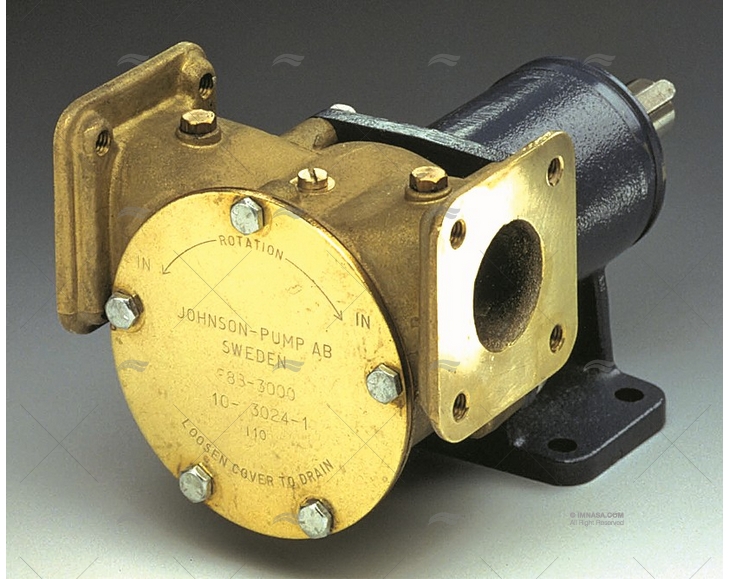

PUMP MULTISERV RET/MEC F8B-3000VF 1 JOHNSON - SPX

Information Illustrative photo

Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.

Ref. 98000032 OEM (10-13024-1)

PUMP MULTISERV RET/MEC F8B-3000VF 1 JOHNSON - SPX

€1,292.89
VAT included

Not available - (Available on request)

Product description

Heavy-duty multi-service pump, flexible and extra-heavy with separate bearing housing and mechanical seal for reduced wear and longer lifespan. These pumps cover the full range of marine applications and can be used as cooling water pumps, bilge pumps, deck wash pumps, emergency, and fire pumps, etc. Pump body: Bronze Impellers: 09-1028 B (neoprene) REF. 98000514 Seal: Mechanical

Data of interest

TECHNICAL DESCRIPTION
  • The Pump F8B-3000-VF without pulley has a shaft with a diameter of 24mm.
  • It has a capacity of 70-279L/min.
  • Has a Thread Diameter of 1 ½’’BSP.
  • Product weight is 7.6Kg.
  • With a Width of 255mm, Length of 152mm, and a Height of 154mm.

Spare parts for 98000032

  •
  • Reference
  • Description
  • Stock
  • Price
  •
    • PUMP REPAIR KIT F8B-5000-VF JOHNSON - SPX
    • 98000600
    • PUMP REPAIR KIT F8B-5000-VF JOHNSON - SP...

    • Not available - (Available on request)

    • €226.37
      VAT included
    • PORT ADAPTOR KIT  BSP 1 1/2 JOHNSON - SPX
    • 98000013
    • PORT ADAPTOR KIT BSP 1 1/2 JOHNSON - SP...

    • Available

    • €169.01
      VAT included
    • IMPELLER15x65x50 8P T7 W/JOINTS NEOP F7 JOHNSON - SPX
    • 98000514
    • IMPELLER15x65x50 8P T7 W/JOINTS NEOP F7 ...

    • Available

    • €55.21
      VAT included
