Ref. 37006105 OEM (164 936 15)

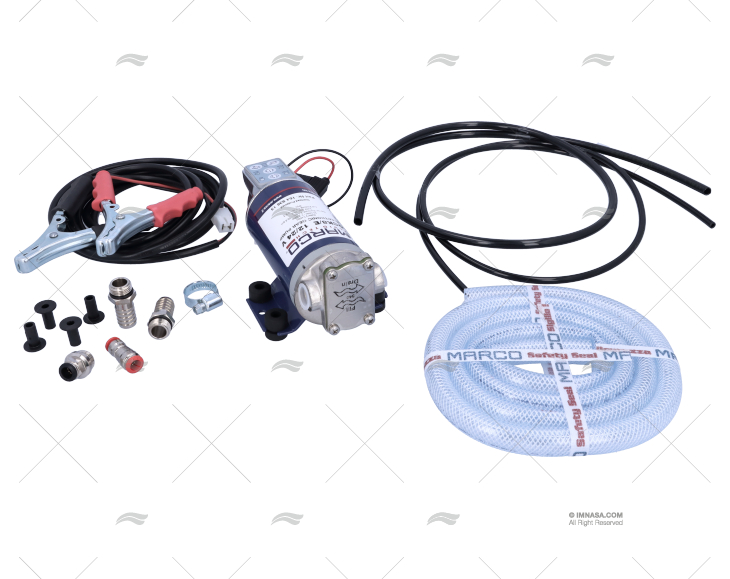

REVERSIBLE ELEC. PUMP KIT UP8-RE 12/24V MARCO
€445.03
VAT included
Expected shortly (approx. 7 days)
Product details
-
Name
Gear pump
-
Model
UP8-RE
-
Amps
4/2
-
Capacity
10L/min
-
Voltage (V)
12/24
-
Pressure (bar)
3.5
Product description
Heavy-duty electric gear pump. Integrated smart control panel to reverse flow direction and manually adjust flow rate. Flow also adjusts automatically based on fluid viscosity. Kit includes: Clamp, fuse, hose, and accessories for transfer.
Data of interest
TECHNICAL DESCRIPTION
- The engine operates at a power of 150W.
- Operates at 12/24V.
- Pump UP8-RE with a maximum intensity of 4Amp.
- Capacity of 10L/min.
- Maximum pressure is 3.5bar.
- Maximum lift of 13m.
- Has a tube diameter of 13mm and a thread of ⅜’’ BSPP.
- The product weight is 2.3Kg.
- Width of 185mm and Length of 114mm.
