Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. L49016001 OEM (49016001)
€997.35
VAT included
Available
Product details
-
Name
Winch
-
Model
Ocean 16ST
-
Colour
Chromed Bronze
-
Speed number
2
-
Turns
2:1/4,2:1
-
Working Load (kg)
570
-
Self Tailing
Yes
-
Genoa Sheet
7,6 - 8,8
-
Spinnaker Sheet
8,8 - 9,8
-
Main Sheet
10,6 -11,2
-
Genoa Halyard
8,9 - 10
-
Spinnaker Halyard
11,3 - 11,8
-
Main Halyard
10,6 - 11,2
-
Cable Diameter (mm)
8-12
Product description

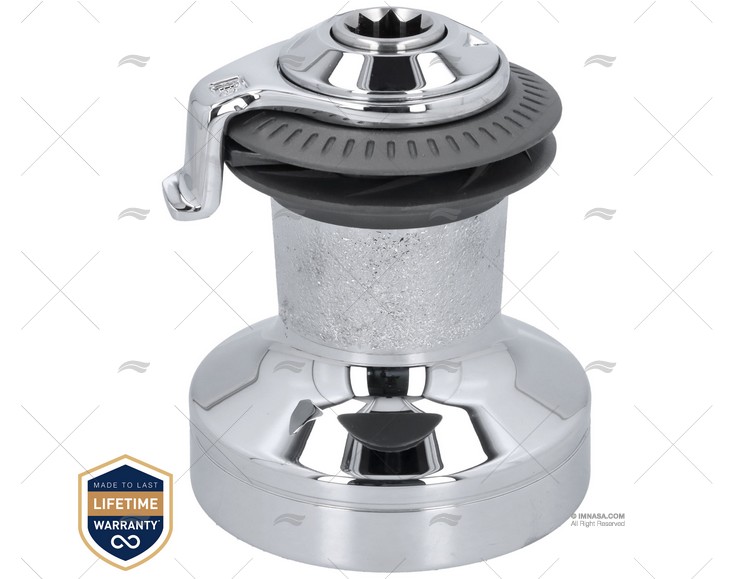

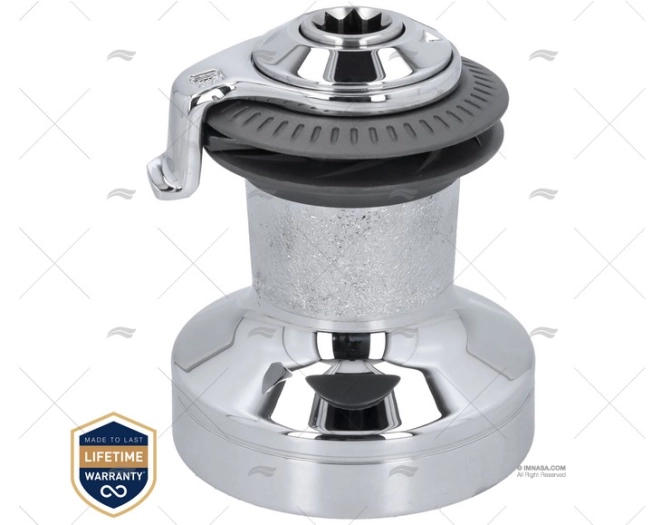

Ocean 16ST Lewmar self-tailing winches provide a firm grip on the rope.
Data of interest
TECHNICAL DESCRIPTION
- Winch Ocean 16ST Self-Tailing with 2-speed system in Chrome Bronze finish.
- The first gear ratio is 2:1 with a second speed of 4.2:1.
- The Ocean weighs 3.9kg.
- The first power ratio is 15.8:1.
- Total height of the Winch is 145.5mm.
- Drum diameter is 65.7mm with a base diameter of 121mm.
- Entry is 58mm with a rope diameter of 8-12.
