IND. VMH 35D WITHOUT GPS
IND. VMH 35D WITHOUT GPS

Information Illustrative photo

Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.

Ref. 62171201

IND. VMH 35D WITHOUT GPS

€497.72
VAT included

Available

Choose another model
  • Ref 62171101 IND. VMH 14 CAN J1939 80DIA GPS
    Available
    €539.03

Related products

  • IND. VMH FLEX NMEA 2000 52DIA B

    Ref. 62143501

    IND. VMH FLEX NMEA 2000 52DIA B

    €193.26
  • IND. VMH14 SATELIT EASYLINK 52DIA

    Ref. 62109901

    IND. VMH14 SATELIT EASYLINK 52DIA

    €110.36
  • IND. VMH FLEX NMEA 2000 80DIA RES

    Ref. 62185501

    IND. VMH FLEX NMEA 2000 80DIA RES

    €452.38
  • IND. VMH FLEX SAE J1939 52DIA

    Ref. 62127608

    IND. VMH FLEX SAE J1939 52DIA

    €188.64
  • IND. VMH FLEX NMEA 2000 52DIA W

    Ref. 62111301

    IND. VMH FLEX NMEA 2000 52DIA W

    €200.48
  • IND. VMH FLEX NMEA 2000 80DIA 5V

    Ref. 62143601

    IND. VMH FLEX NMEA 2000 80DIA 5V

    €419.14
  • IND. VMH FLEX IBM12 52DIA W

    Ref. 62184701

    IND. VMH FLEX IBM12 52DIA W

    €348.37
  • IND. VMH FLEX IBM12 52DIA B

    Ref. 62184801

    IND. VMH FLEX IBM12 52DIA B

    €499.17
  • IND. VMH FLEX JB1939 52DIA B

    Ref. 62186001

    IND. VMH FLEX JB1939 52DIA B

    €152.84
  • IND. VMH FLEX JB1939 52DIA W

    Ref. 62110901

    IND. VMH FLEX JB1939 52DIA W

    €163.81
  • IND. VMH FLEX NMEA 2000 52DIA

    Ref. 62186401

    IND. VMH FLEX NMEA 2000 52DIA

    €226.50

Product description

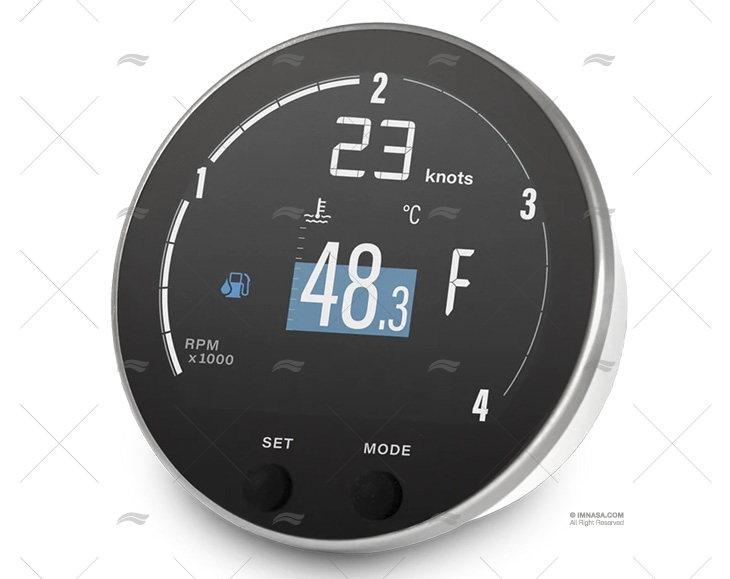

The VMH 35-D indicator is the ideal standalone solution for comprehensive monitoring of your diesel engine. With a tachometer scale configurable to 3000 or 4000 RPM, this compact display offers clear and precise visualization of key data such as engine, battery, tank, and GPS. It receives and displays detailed engine information along with configurable alarms, whether via the SAE J1939 bus or directly through its integrated menu. It is compatible with 12V and 24V electrical systems, and its EasyLink connectivity allows for system expansion with up to 16 VMH 14 satellite instruments, to keep the most sensitive data always under control.

Data of interest

TECHNICAL DESCRIPTION
  • Nominal voltage: 12V / 24V and operational voltage range: 9 - 32V.
  • Current consumption ≤ 150 mA (normal mode).
  • Dimensions: 100 mm (outer) 85 mm (mounting hole).
  • Front bezel in brushed stainless steel and front lens of mineral glass.
  • Connectors: 12-pin Molex MX-150 / 5-pin DeviceNet M12.

IND. VMH 35D WITHOUT GPS
