IND. VMH FLEX JB1939 52DIA W
IND. VMH FLEX JB1939 52DIA W

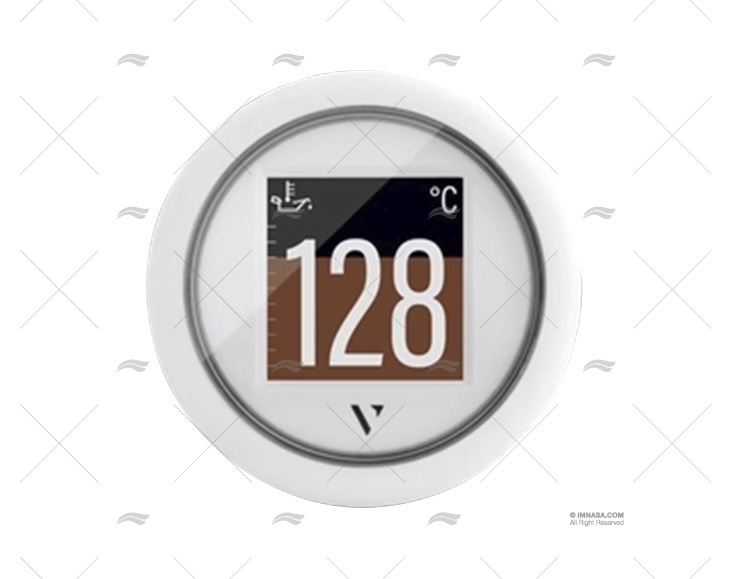

Information Illustrative photo

Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.

Ref. 62110901

IND. VMH FLEX JB1939 52DIA W

€163.81
VAT included

Available

Choose another model
  • Ref 62186001 IND. VMH FLEX JB1939 52DIA B
    Available
    €152.84

Related products

  • IND. VMH FLEX NMEA 2000 52DIA B

    Ref. 62143501

    IND. VMH FLEX NMEA 2000 52DIA B

    €193.26
  • IND. VMH14 SATELIT EASYLINK 52DIA

    Ref. 62109901

    IND. VMH14 SATELIT EASYLINK 52DIA

    €110.36
  • IND. VMH FLEX NMEA 2000 80DIA RES

    Ref. 62185501

    IND. VMH FLEX NMEA 2000 80DIA RES

    €452.38
  • IND. VMH FLEX SAE J1939 52DIA

    Ref. 62127608

    IND. VMH FLEX SAE J1939 52DIA

    €188.64
  • IND. VMH FLEX NMEA 2000 52DIA W

    Ref. 62111301

    IND. VMH FLEX NMEA 2000 52DIA W

    €200.48
  • IND. VMH FLEX NMEA 2000 80DIA 5V

    Ref. 62143601

    IND. VMH FLEX NMEA 2000 80DIA 5V

    €419.14
  • IND. VMH 14 CAN J1939 80DIA GPS

    Ref. 62171101

    IND. VMH 14 CAN J1939 80DIA GPS

    €539.03
  • IND. VMH 35D WITHOUT GPS

    Ref. 62171201

    IND. VMH 35D WITHOUT GPS

    €497.72
  • IND. VMH FLEX IBM12 52DIA W

    Ref. 62184701

    IND. VMH FLEX IBM12 52DIA W

    €348.37
  • IND. VMH FLEX IBM12 52DIA B

    Ref. 62184801

    IND. VMH FLEX IBM12 52DIA B

    €499.17
  • IND. VMH FLEX NMEA 2000 52DIA

    Ref. 62186401

    IND. VMH FLEX NMEA 2000 52DIA

    €226.50

Product description

Veratron VL Flex 52 - white J1939 with a 1.44'' TFT sunlight-readable display, enables simultaneous display of two diesel engine data sets, offering clear and precise visualization. Compatible with a wide range of sensors, it stands out for its easy wireless configuration via a mobile device and the Veratron app, simplifying installation and customization to each vessel or industrial vehicle's needs. Supports analog sensor inputs, as well as J1939 and LIN 2.0 communication. Its graphic design allows for single or dual format configuration, displaying up to 30 data sets. Includes large numerical values and colorful bar graphs, perfectly visible under any light condition thanks to its antireflective PMMA lens readable in direct sunlight.

Data of interest

TECHNICAL DESCRIPTION
  • Nominal voltage 12V / 24V (from EasyLink connection) and operating voltage of 9 - 32V.
  • Current consumption ≤ 50 mA (maximum backlight intensity).
  • Dimensions: 60 mm (outer) 52 mm (mounting hole).
  • Front ring of white polycarbonate and front lens of PMMA with anti-reflective and anti-fog treatments.
  • 1.44” color TFT screen readable in direct sunlight, with resolution 125 x 125 pixels.
  • Wireless interface compatible with AirWave, digital ports SAE J1939, LIN bus.
  • Tyco / Hirschmann MQS connectors with 8 pins.
