IND. VMH FLEX NMEA 2000 80DIA RES
IND. VMH FLEX NMEA 2000 80DIA RES

Information Illustrative photo

Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.

Ref. 62185501

IND. VMH FLEX NMEA 2000 80DIA RES

€452.38
VAT included

Available

Choose another model
  • Ref 62143601 IND. VMH FLEX NMEA 2000 80DIA 5V
    Not available
    €419.14

Related products

  • IND. VMH FLEX NMEA 2000 52DIA B

    Ref. 62143501

    IND. VMH FLEX NMEA 2000 52DIA B

    €193.26
  • IND. VMH14 SATELIT EASYLINK 52DIA

    Ref. 62109901

    IND. VMH14 SATELIT EASYLINK 52DIA

    €110.36
  • IND. VMH FLEX SAE J1939 52DIA

    Ref. 62127608

    IND. VMH FLEX SAE J1939 52DIA

    €188.64
  • IND. VMH FLEX NMEA 2000 52DIA W

    Ref. 62111301

    IND. VMH FLEX NMEA 2000 52DIA W

    €200.48
  • IND. VMH 14 CAN J1939 80DIA GPS

    Ref. 62171101

    IND. VMH 14 CAN J1939 80DIA GPS

    €539.03
  • IND. VMH 35D WITHOUT GPS

    Ref. 62171201

    IND. VMH 35D WITHOUT GPS

    €497.72
  • IND. VMH FLEX IBM12 52DIA W

    Ref. 62184701

    IND. VMH FLEX IBM12 52DIA W

    €348.37
  • IND. VMH FLEX IBM12 52DIA B

    Ref. 62184801

    IND. VMH FLEX IBM12 52DIA B

    €499.17
  • IND. VMH FLEX JB1939 52DIA B

    Ref. 62186001

    IND. VMH FLEX JB1939 52DIA B

    €152.84
  • IND. VMH FLEX JB1939 52DIA W

    Ref. 62110901

    IND. VMH FLEX JB1939 52DIA W

    €163.81
  • IND. VMH FLEX NMEA 2000 52DIA

    Ref. 62186401

    IND. VMH FLEX NMEA 2000 52DIA

    €226.50

Product description

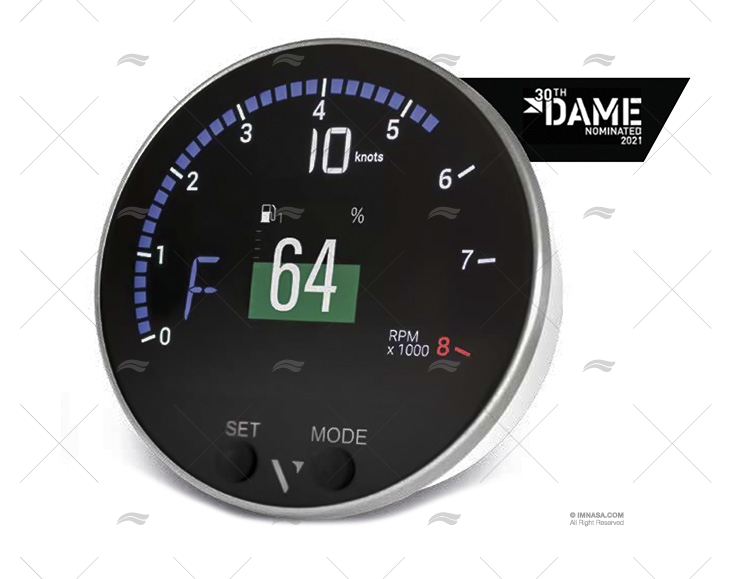

The VMH 35 gauge is the first model of Veratron's premium VMH range, developed for inboard or outboard engine applications. Its sleek 'black glass' design with a brushed stainless steel bezel fits perfectly into modern or classic consoles, ideal for small boats with limited space. It includes a 1.44” color hybrid display, sunlight readable and protected by mineral glass with optical bonding, ensuring optimal visibility in any condition. Thanks to its integrated NMEA 2000 gateway, it distributes data such as fuel, trim, and tachometer to other devices like plotters, without the need for external converters.

Data of interest

TECHNICAL DESCRIPTION
  • Analog inputs: 2x resistive / 1x frequency.
  • Nominal voltage of 12V and operating voltage of 9 - 16V.
  • Current consumption ≤ 150 mA (normal mode).
  • Dimensions: 100 mm (outer) 85 mm (mounting hole).
  • Front ring of brushed stainless steel and front lens of mineral glass.
  • 1.44" color TFT display with IBN technology and optical bonding.
  • Molex MX-150 connectors with 12 pins / DeviceNet M12 with 5 pins.
IND. VMH FLEX NMEA 2000 80DIA RES
