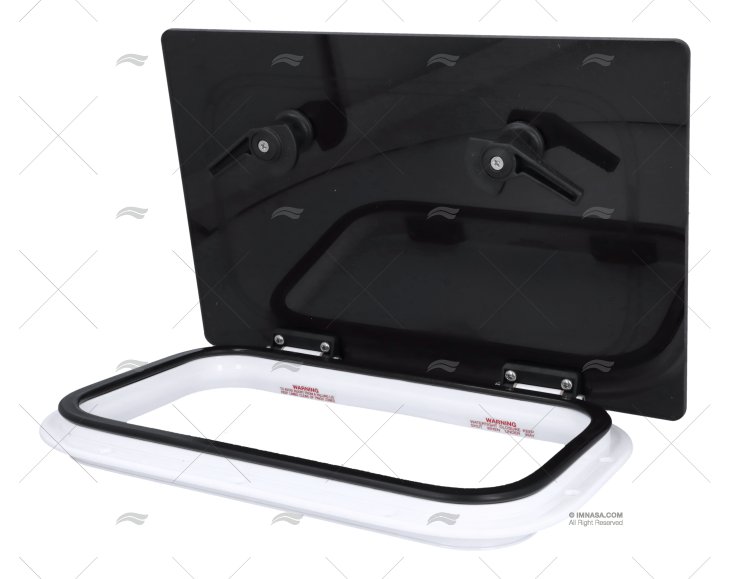

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. L399204924 OEM (399204924)
FLUSH HATCH 3G 20 DARK GREY LEWMAR
Not available - (Available on request)
Product details
-
Name
Hatches
-
Model
Flus 3G
-
Colour
Black
-
Acrylic Colour
Dark Grey
-
Size
20
-
Depth (mm)
31
-
Width (mm)
272
-
Height (mm)
417
-
Cutting Height (mm)
347
-
Cutting Width (mm)
202
-
Cutting Depth (mm)
42.5
Related products
-
Ref. L39910030
HATCH LOW PROFILE SZ 10 LEWMAR
/ LEWMAR
€553.22 -
Ref. L39960030
LOW PROFILE HATCH SZ-60 LEWMAR
/ LEWMAR
€931.00 -
Ref. L39930030
LOW PROFILE HATCH SZ-30 LEWMAR
/ LEWMAR
€810.75 -
Ref. L39944030
LOW PROFILE HATCH SZ-44 LEWMAR
/ LEWMAR
€758.36 -
Ref. L39920030
LOW PROFILE HATCH SZ-20 LEWMAR
/ LEWMAR
€554.64 -
Ref. L39970020
MEDIUM PROFILE HATCH SZ-35 LEWMAR
/ LEWMAR
€1,512.60 -
Ref. L39944812
FLUSH SQUARE HATCH T-44 LEWMAR
/ LEWMAR
€1,250.43 -
Ref. L399440303
LOW PROFILE HATCH SZ-44 W/ TELESCOPIC ST LEWMAR
/ LEWMAR
€758.36 -
Ref. L39960812
FLUSH SQUARE HATCH T-60 LEWMAR
/ LEWMAR
€1,344.66 -
Ref. L39960020
MEDIUM PROFILE HATCH SZ-34 LEWMAR
/ LEWMAR
€1,036.32 -
Ref. L39940030
LOW PROFILE HATCH SZ-40 LEWMAR
/ LEWMAR
€920.82 -
Ref. L39900030
LOW PROFILE HATCH 00 AUTO-SUPPORTED LEWMAR
/ LEWMAR
€514.59 -
Ref. 35250260
ALUMINIUM MP HATCH 578,9x578,9mm
€586.45 -
Ref. L39944020
MEDIUM PROFILE HATCH T44 SELF-SUPPORTI LEWMAR
/ LEWMAR
€813.14 -
Ref. L399600303
LOW PROFILE HATCH 60 GREY LEWMAR
/ LEWMAR
€952.38 -
Ref. L39930020
MEDIUM PROFILE HATCH SZ-30 LEWMAR
/ LEWMAR
€939.04 -
Ref. 35250103
ROUND HATCH 565mm FORESTI SUARDI
/ FORESTI SUARDI
€1,146.28 -
Ref. 35250280
OENING ROUND HATCH 486mm. ALUMINIUM
€441.64 -
Ref. 35250256
ALUMINIUM MP HATCH 519x389mm
€593.94 -
Ref. L39630050
OCEAN HATCH FLAT BASE PROFILE SZ-30 LEWMAR
/ LEWMAR
€961.62 -
Ref. L39954030
LOW PROFILE HATCH SZ-54 LEWMAR
/ LEWMAR
€668.28 -
Ref. 35250258
ALUMINIUM MEDIUM PROFILE HATCH 486x486mm
€693.43 -
Ref. L39950030
LOW PROFILE HATCH SZ-50 LEWMAR
/ LEWMAR
€790.41 -
Ref. 35250252
ALUMINIUM LOW PROFILE HATCH 481x481mm
€688.90 -
Ref. L39910812
FLUSH HATCH 10 DARK GREY LEWMAR
/ LEWMAR
€653.01
Product description
Data of interest
- Fits onto a flat deck surface with a maximum tolerance of approximately 1 mm.
- Fastening size for the hinge section (M6 / 1/4'').
- Fastening size for the lower frame: use a 5 mm countersunk screw No. 10 UNC 2 BA (CSK).
- All sizes are suitable for CE area 2 (deck, hull, cabin and thwart).
- The flush hatch requires a recess in the deck to be properly seated.
- If the recess is not shaped correctly, the hatch will not sit flush and may fail to open or close.
- The flush hatch opening is limited to approximately 90 degrees. Supplied only with stays, friction lever or friction hinges.
