Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 35240797 OEM (SV_0512_06L)

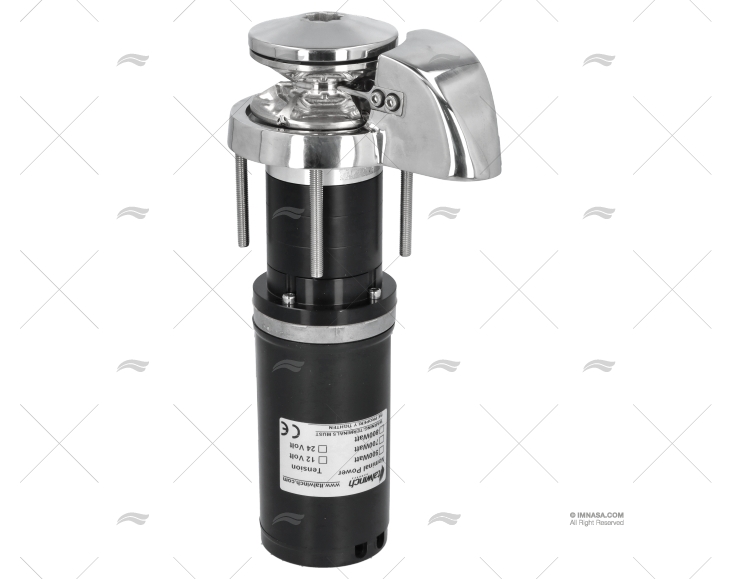

SMART V WINDLASS 12V 500W W/O BELL 06mm ITALWINCH
Available
Product details
-
Name
Windlasses
-
Model
Smart V
-
Power (W)
500
-
Chain (mm)
6
-
Boat Length (m)
10
-
Position
Vertical
-
Voltage (V)
12
Related products
-
Ref. 35240775
SMART WINDLASS 12V 500W W/O BELL 06mm ITALWINCH
/ ITALWINCH
€661.99 -
Ref. 35240777
SMART WINDLASS 12V 700W W/O BELL 06mm ITALWINCH
/ ITALWINCH
€678.34 -
Ref. L6670011108
WINDLASS V-700 12V 6mm LEWMAR
/ LEWMAR
€812.44 -
Ref. L6657011198
WINDLASS PRO-SERIES 1000G 12V 8mm LEWMAR
/ LEWMAR
€1,404.73 -
Ref. 35240779
SMART WINDLASS 12V 1000W W/O BELL 08mm ITALWINCH
/ ITALWINCH
€1,059.90 -
Ref. 35240799
WINDLASS KIT SMRT 12V 500W W/O BELL 6mm ITALWINCH
/ ITALWINCH
€793.77 -
Ref. L6656011967
WINDLASS PRO-SERIES 700G 12V 6-7mm-1/4 LEWMAR
/ LEWMAR
€1,234.10 -
Ref. 35240801
SMART PLUS WINDLASS 12V 1000W W/OB 08mm ITALWINCH
/ ITALWINCH
€1,241.90 -
Ref. 35240751
WINDLASS DEVON 12V 1500W W/BELL 10mm ITALWINCH
/ ITALWINCH
€1,765.87 -
Ref. 35240816
SMART R1 WINDLASS 12V 500W W/OB 06mm ITALWINCH
/ ITALWINCH
€779.75 -
Ref. 35240778
SMART WINDLASS 12V 700W W/BELL 06mm ITALWINCH
/ ITALWINCH
€767.24 -
Ref. 35240737
WINDLASS OBI-500 12V 500W W/OUT DRUM 6 ITALWINCH
/ ITALWINCH
€810.58 -
Ref. 35240749
WINDLASS DEVON 12V 1000W W/BELL 08mm ITALWINCH
/ ITALWINCH
€1,729.45 -
Ref. 35240817
SMART R1 WINDLASS 12V 700W W/OB 06mm ITALWINCH
/ ITALWINCH
€852.59 -
Ref. 35240738
WINDLASS OBI-500 12V 700W W/OUT DRUM 6M ITALWINCH
/ ITALWINCH
€862.86 -
Ref. 35240805
SMART PLUS WINDLASS 12V 1500W W/OB 10mm ITALWINCH
/ ITALWINCH
€1,536.14 -
Ref. L6671011196
WINDLASS V1 G 12V 700W RC 6mm LEWMAR
/ LEWMAR
€1,928.45 -
Ref. L6656811196
WINDLASS PRO-SPORT 551 LEWMAR
/ LEWMAR
€1,026.14 -
Ref. 35240820
SMART R1 WINDLASS 12V 1000W W/OB 08mm ITALWINCH
/ ITALWINCH
€1,075.77 -
Ref. 35240803
SMART PLUS WINDLASS 12V 1000W W/B 08mm ITALWINCH
/ ITALWINCH
€1,347.52 -
Ref. 35240807
SMART PLUS WINDLASS 12V 1500W W/B 10mm ITALWINCH
/ ITALWINCH
€1,582.84 -
Ref. 35240781
SMART WINDLASS 12V 1000W W/BELL 08mm ITALWINCH
/ ITALWINCH
€1,155.14 -
Ref. 35240839
IKI PRO WINDLASS 12V 500W W/O DRUM 06mm ITALWINCH
/ ITALWINCH
€1,176.63 -
Ref. 35240842
IKI PRO WINDLASS 12V 800W W/O DRUM 08mm ITALWINCH
/ ITALWINCH
€1,199.04 -
Ref. 35240740
WINDLASS OBI-1000 12V 1000W W/ DRUM 8mm ITALWINCH
/ ITALWINCH
€1,714.50
Product description
Data of interest
- Vertical electric anchor windlass without capstan.
- The motor delivers 500 W and operates at 12 V.
- Recommended thermal-magnetic circuit breaker minimum 60 AMP.
- The Smart V model fits calibrated 6 mm chain, accepts rope diameter 12 mm and has a hoisting speed of 23 m/min.
- The maximum load it can withstand is 670 kg.
- Supports a working load of 90 kg to retrieve the anchor efficiently.
- Weight 10.4 kg.
- For craft of 10 m.
