Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.

Ref. L6670011108 OEM (6670011108)

WINDLASS V-700 12V 6mm LEWMAR

Name: WINDLASS V-700 12V 6mm LEWMAR
Brand: LEWMAR
SKU: L6670011108
Price: 812.44 EUR
Availability: InStock

€812.44

VAT included

Available

Product details

Name

Windlasses
Model

V700
Power (W)

320
Chain (mm)

6/7
Boat Length (m)

6-10.5
Position

Vertical
Voltage (V)

12

Ref. 35240775

SMART WINDLASS 12V 500W W/O BELL 06mm ITALWINCH

/ ITALWINCH

€661.99
Ref. 35240777

SMART WINDLASS 12V 700W W/O BELL 06mm ITALWINCH

/ ITALWINCH

€678.34
Ref. 35240797

SMART V WINDLASS 12V 500W W/O BELL 06mm ITALWINCH

/ ITALWINCH

€1,044.94
Ref. L6657011198

WINDLASS PRO-SERIES 1000G 12V 8mm LEWMAR

/ LEWMAR

€1,404.73
Ref. 35240779

SMART WINDLASS 12V 1000W W/O BELL 08mm ITALWINCH

/ ITALWINCH

€1,059.90
Ref. 35240799

WINDLASS KIT SMRT 12V 500W W/O BELL 6mm ITALWINCH

/ ITALWINCH

€793.77
Ref. L6656011967

WINDLASS PRO-SERIES 700G 12V 6-7mm-1/4 LEWMAR

/ LEWMAR

€1,234.10
Ref. 35240801

SMART PLUS WINDLASS 12V 1000W W/OB 08mm ITALWINCH

/ ITALWINCH

€1,241.90
Ref. 35240751

WINDLASS DEVON 12V 1500W W/BELL 10mm ITALWINCH

/ ITALWINCH

€1,765.87
Ref. 35240816

SMART R1 WINDLASS 12V 500W W/OB 06mm ITALWINCH

/ ITALWINCH

€779.75
Ref. 35240778

SMART WINDLASS 12V 700W W/BELL 06mm ITALWINCH

/ ITALWINCH

€767.24
Ref. 35240737

WINDLASS OBI-500 12V 500W W/OUT DRUM 6 ITALWINCH

/ ITALWINCH

€810.58
Ref. 35240749

WINDLASS DEVON 12V 1000W W/BELL 08mm ITALWINCH

/ ITALWINCH

€1,729.45
Ref. 35240817

SMART R1 WINDLASS 12V 700W W/OB 06mm ITALWINCH

/ ITALWINCH

€852.59
Ref. 35240738

WINDLASS OBI-500 12V 700W W/OUT DRUM 6M ITALWINCH

/ ITALWINCH

€862.86
Ref. 35240815

SMART V WINDLASS 12V 800W W/O BELL 06mm ITALWINCH

/ ITALWINCH

€1,084.18
Ref. 35240805

SMART PLUS WINDLASS 12V 1500W W/OB 10mm ITALWINCH

/ ITALWINCH

€1,536.14
Ref. L6671011196

WINDLASS V1 G 12V 700W RC 6mm LEWMAR

/ LEWMAR

€1,928.45
Ref. L6656811196

WINDLASS PRO-SPORT 551 LEWMAR

/ LEWMAR

€1,026.14
Ref. 35240820

SMART R1 WINDLASS 12V 1000W W/OB 08mm ITALWINCH

/ ITALWINCH

€1,075.77
Ref. 35240803

SMART PLUS WINDLASS 12V 1000W W/B 08mm ITALWINCH

/ ITALWINCH

€1,347.52
Ref. 35240807

SMART PLUS WINDLASS 12V 1500W W/B 10mm ITALWINCH

/ ITALWINCH

€1,582.84
Ref. 35240781

SMART WINDLASS 12V 1000W W/BELL 08mm ITALWINCH

/ ITALWINCH

€1,155.14
Ref. 35240839

IKI PRO WINDLASS 12V 500W W/O DRUM 06mm ITALWINCH

/ ITALWINCH

€1,176.63
Ref. 35240842

IKI PRO WINDLASS 12V 800W W/O DRUM 08mm ITALWINCH

/ ITALWINCH

€1,199.04

Product description

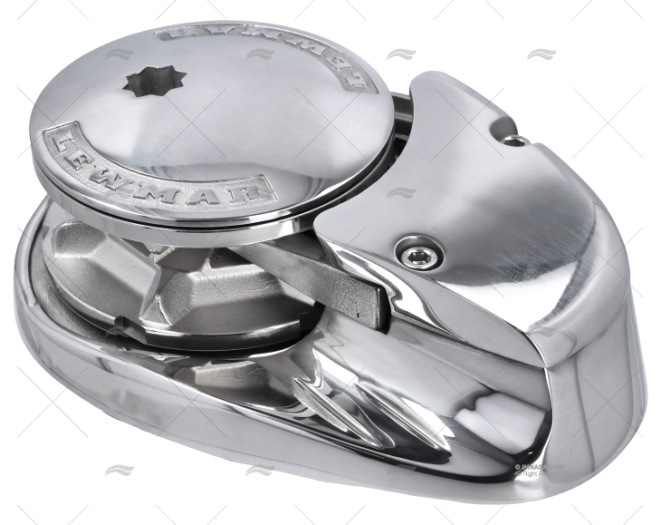

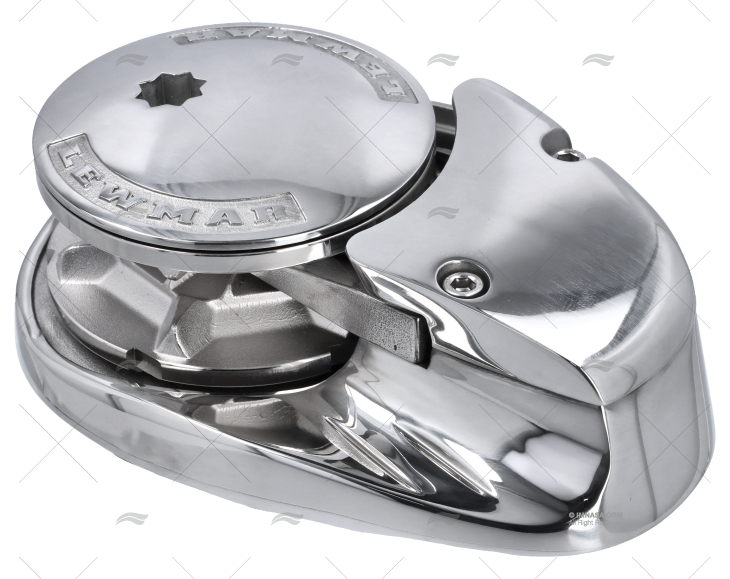

Lewmar V700 electric boat windlass with vertical motor and elegant recessed design that conceals the motor beneath. The V700 is one of the most attractive and durable windlasses on the market. It operates with the touch of a button and has two built-in features that make it unique; motor protection and a safe anchor drop lock. Minimal parts for greater reliability and late boat/chain configuration on the Shipyard assembly line. Impact-resistant motor cover. IP67 (Waterproof up to 1 meter depth).

Data of interest

Anchor windlass 320 W — compact marine windlass for boats 6–10.5 m, robust lifting capacity and efficient anchor retrieval.

The motor is rated at 320 W and 12 V.
Minimum recommended marine circuit breaker: 45 A.
The V700 model fits calibrated chains of 6/7 mm, rope diameter 12 mm and hauling speed of 25 m/min.
Unit weight: 6.5 kg.
Maximum load capacity: 320 kg; working load limit for anchor retrieval: 79 kg.
Recommended for vessels from 6 to 10.5 m.

Spare parts for L6670011108

Reference
Description
Stock
Price

- L66000608
- BEARING / SEAL KIT V700 LEWMAR
- Available
- €156.05

  VAT included
