Ref. 52200801 OEM (2200801 + 2200017)
INBOARD STEERING KIT 27Mkg LECOMBLE SCHMITT
€857.70
VAT included
Available
Product description

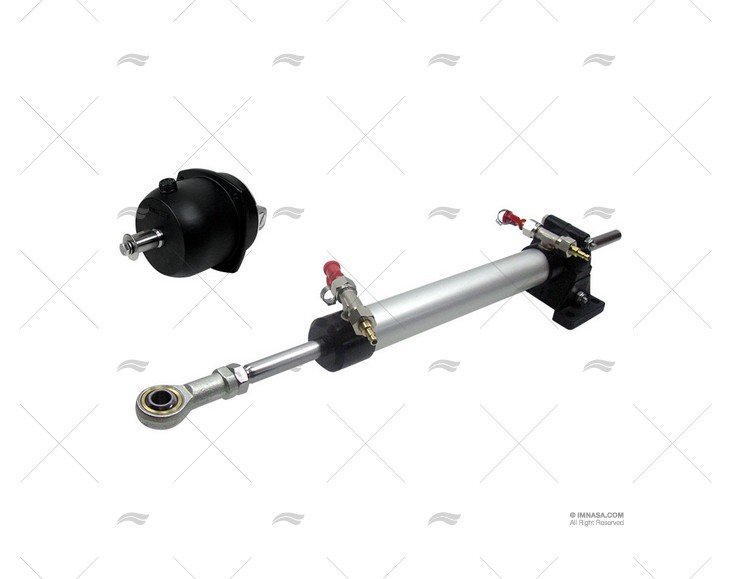

Lecomble and Schmitt inboard hydraulic steering kit, composed of a VHM 26 DTP piston, a 20 HB CAR pump, a 10-meter hydraulic hose, a non-return valve on the pump, and fittings. The number of turns of the steering wheel is 3 from port to starboard.
Data of interest
TECHNICAL DESCRIPTION
- The hydraulic cylinder VHM 26 DTP for helm steering delivers a maximum thrust of 27 kg at a maximum pressure of 50 bar.
- The hydraulic stroke is 150 mm.
- It has a hydraulic oil volume of 62.6 cm3.
- With a helm wheel radius of 520 mm and a total steering angle of 70º.
- Weight: 1 kg.
