Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 52203350 OEM (2203350 + 2200017)
COMPLETE STEERING KIT LS 175 PRO 10m LECOMBLE SCHMITT
€1,020.38
VAT included
Available
Choose another model
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
175
Product description

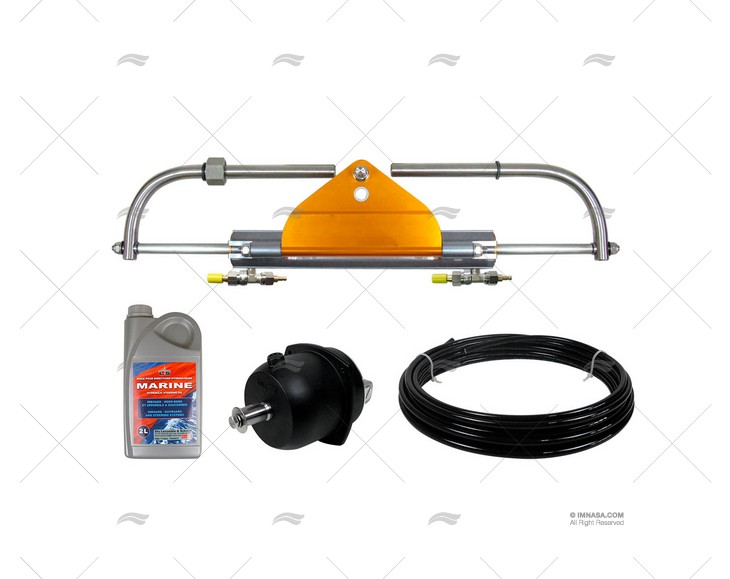

Lecomble & Schmitt LS 175 PRO hydraulic steering kit for outboard motors up to 175 HP (300 HP for dual engines in counter rotation). The number of turns from port to starboard is 5.3. Maximum speed is 40 knots. The kit includes a piston with fittings, a pump with fittings, 10m of hose and 2 liters of oil.
Data of interest
TECHNICAL DESCRIPTION
- The marine piston VHM EX175 is rated at 175 Hp with a cubic capacity of 137 cm3.
- The hydraulic cylinder stroke is 210 mm.
- The hydraulic pump 26 HB CAR has a chamber volume of 400 cm3 and a displacement of 26 cm3/rev.
- The maximum helm wheel diameter is 520 mm.
- The hydraulic line length is 10 m.
