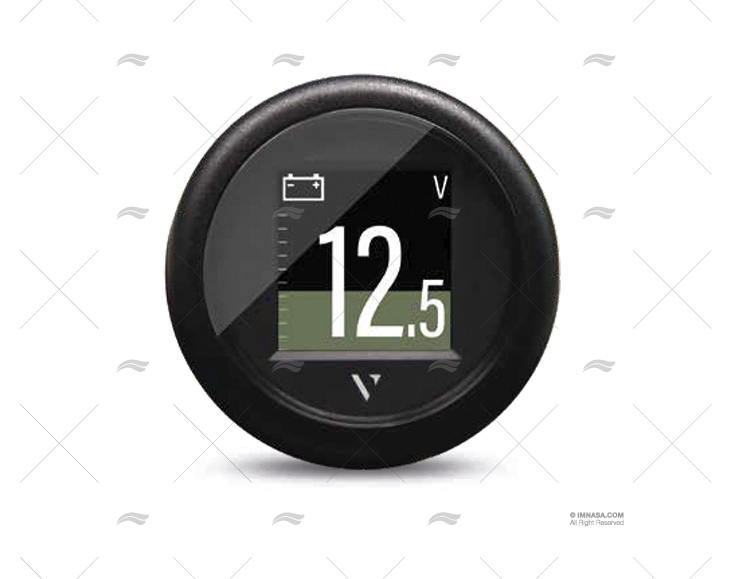

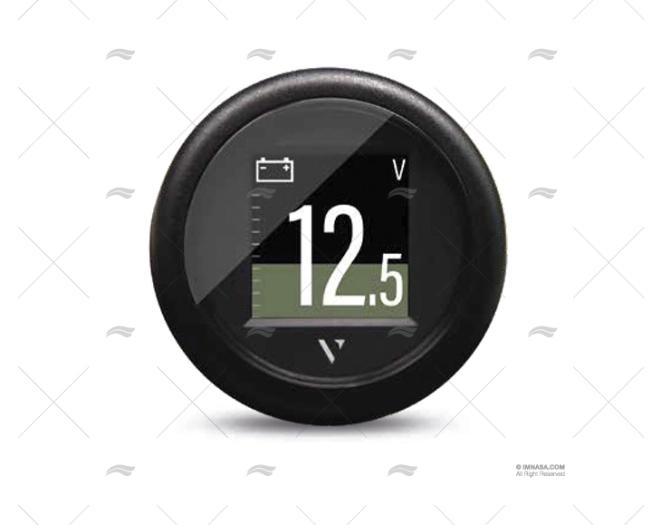

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 62184801
IND. VMH FLEX IBM12 52DIA B
Available
Related products
-
Ref. 62143501
IND. VMH FLEX NMEA 2000 52DIA B
€193.26 -
Ref. 62109901
IND. VMH14 SATELIT EASYLINK 52DIA
€110.36 -
Ref. 62185501
IND. VMH FLEX NMEA 2000 80DIA RES
€452.38 -
Ref. 62127608
IND. VMH FLEX SAE J1939 52DIA
€188.64 -
Ref. 62111301
IND. VMH FLEX NMEA 2000 52DIA W
€200.48 -
Ref. 62143601
IND. VMH FLEX NMEA 2000 80DIA 5V
€419.14 -
Ref. 62171101
IND. VMH 14 CAN J1939 80DIA GPS
€539.03 -
Ref. 62171201
IND. VMH 35D WITHOUT GPS
€497.72 -
Ref. 62186001
IND. VMH FLEX JB1939 52DIA B
€152.84 -
Ref. 62110901
IND. VMH FLEX JB1939 52DIA W
€163.81 -
Ref. 62186401
IND. VMH FLEX NMEA 2000 52DIA
€226.50
Product description
Data of interest
- Nominal voltage of 24V (from EasyLink connection) and operational voltage of 8 - 32V.
- Current consumption ≤ 50 mA (maximum backlight intensity).
- Battery capacity up to 500 Ah and compatible battery types: Lead acid, Gel, AGM.
- Dimensions: 60 mm (exterior) 52 mm (mounting hole).
- Front ring of black polycarbonate and front lens PMMA with anti-reflective and anti-fog treatments.
- 1.44” color TFT display readable in sunlight, with 125 x 125 pixels resolution.
- Wireless interface compatible with AirWave, digital bus LIN ports.
- 8-pin Tyco / Hirschmann MQS connectors.
