IND. VMH FLEX IBM12 52DIA W

Products

NAVIGATION, ELECTRONICS

GAUGES FARIA

IND. VMH FLEX IBM12 52DIA W
IND. VMH FLEX IBM12 52DIA W

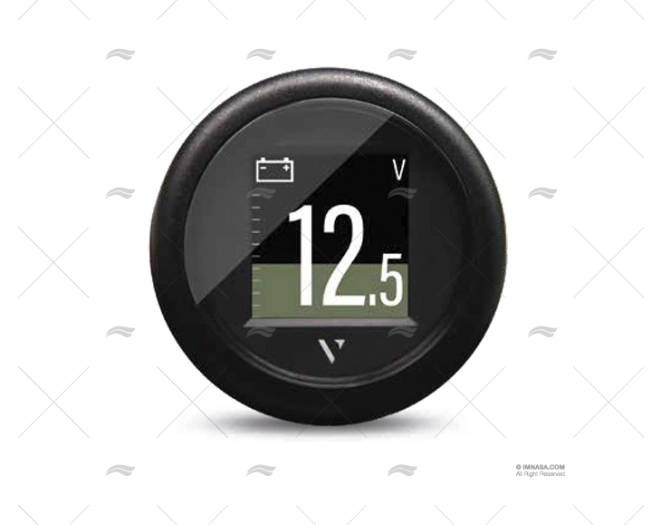

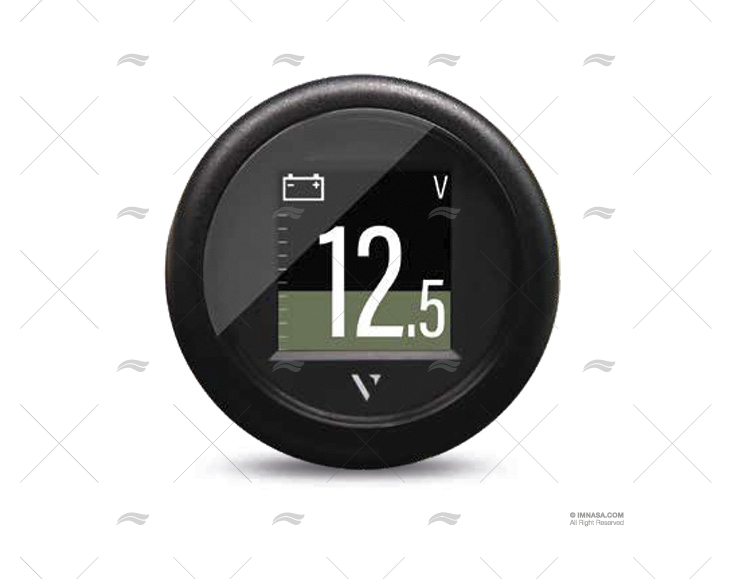

Information Illustrative photo

Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.

Ref. 62184701

IND. VMH FLEX IBM12 52DIA W

€347.69
VAT included

Not available

Choose another model
  • Ref 62184801 IND. VMH FLEX IBM12 52DIA B
    Not available
    €498.16
  • Page in catalogue
  • Instructions
    • 62184701
  • Documentation
    • 62184701
  • Description

Related products

  • IND. VMH14 SATELIT EASYLINK 52DIA

    Ref. 62109901

    IND. VMH14 SATELIT EASYLINK 52DIA

    €110.15
  • IND. VMH FLEX NMEA 2000 52DIA B

    Ref. 62143501

    IND. VMH FLEX NMEA 2000 52DIA B

    €192.89
  • IND. VMH FLEX NMEA 2000 52DIA W

    Ref. 62111301

    IND. VMH FLEX NMEA 2000 52DIA W

    €200.09
  • IND. VMH FLEX NMEA 2000 80DIA 5V

    Ref. 62143601

    IND. VMH FLEX NMEA 2000 80DIA 5V

    €418.32
  • IND. VMH FLEX NMEA 2000 80DIA RES

    Ref. 62185501

    IND. VMH FLEX NMEA 2000 80DIA RES

    €451.46
  • IND. VMH 14 CAN J1939 80DIA GPS

    Ref. 62171101

    IND. VMH 14 CAN J1939 80DIA GPS

    €537.95
  • IND. VMH 35D WITHOUT GPS

    Ref. 62171201

    IND. VMH 35D WITHOUT GPS

    €496.74
  • IND. VMH FLEX JB1939 52DIA B

    Ref. 62186001

    IND. VMH FLEX JB1939 52DIA B

    €152.53
  • IND. VMH FLEX JB1939 52DIA W

    Ref. 62110901

    IND. VMH FLEX JB1939 52DIA W

    €163.48
  • IND. VMH FLEX NMEA 2000 52DIA

    Ref. 62186401

    IND. VMH FLEX NMEA 2000 52DIA

    €226.03
  • IND. VMH FLEX SAE J1939 52DIA

    Ref. 62127608

    IND. VMH FLEX SAE J1939 52DIA

    €188.25
  • CONTROL PANEL DOLPHIN 12-60 DOLPHIN

    Ref. 65399033

    CONTROL PANEL DOLPHIN 12-60 DOLPHIN

    / DOLPHIN

    €202.45

Product description

Flex display kit for Battery monitoring. 1x Resistive input for Fuel or Fresh Water level. Dedicated harness with pushbutton for screen scrolling. Battery charge notification

Data of interest

TECHNICAL DESCRIPTION
  • Rated voltage of 12V (via EasyLink connection) and operating voltage of 8 - 32V.
  • Current consumption ≤ 50 mA (maximum backlight intensity).
  • Battery capacity up to 500 Ah and compatible battery types: Lead-acid, Gel, AGM.
  • Dimensions: 60 mm (outer) 52 mm (mounting hole).
  • Front ring made of black polycarbonate and front lens with PMMA with anti-reflective and anti-fog treatments.
  • 1.44” color TFT display readable in sunlight, with a resolution of 125 x 125 pixels.
  • Wireless interface compatible with AirWave, LIN bus digital ports.
  • 8-pin Tyco / Hirschmann MQS connectors.
IND. VMH FLEX IBM12 52DIA W
