WINDLASS V1 G 12V 700W RC 6mm LEWMAR

Home

Products

ENERGY, ELECTRICS

WINDLASSES

WINDLASS V1 G 12V 700W RC 6mm LEWMAR
WINDLASS V1 G 12V 700W RC 6mm LEWMAR

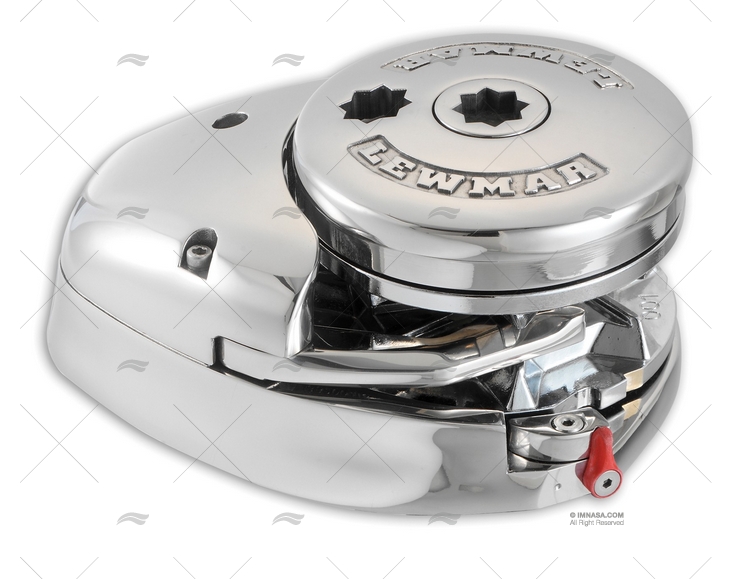

Information Illustrative photo

Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.

LEWMAR

Ref. L6671011196 OEM (6671011196)

WINDLASS V1 G 12V 700W RC 6mm LEWMAR

€1,928.45
VAT included

Not available at the moment
Delivery forecast from 11/06/2025 to 11/13/2025

Choose another model
  • Ref L68000954 MOTOR GEARBOX V1 SPORT 12V 700W FAST FIT LEWMAR
    Not available - (Available on request)
    €1,350.23
  • Ref L68000957 REDUCTION MOTOR V3 12V FAST FIT LEWMAR
    Not available - (Available on request)
    €2,097.12
  • Ref L66810065 MOTOR GEARBOX V1 12V LEWMAR
    Available
    €1,082.32
  • Ref L68000951 DECK UNIT V1 GIPSY ONLY LEWMAR
    Available
    €1,165.07

Product details

  • Name

    Windlasses

  • Model

    V1 Fast-Fit

  • Power (W)

    700

  • Chain (mm)

    6

  • Boat Length (m)

    To 14

  • Position

    Vertical

  • Voltage (V)

    12

Related products

slide 6 to 10 of 25

Product description

Lewmar V1 FAST-FIT electric windlass with horizontal motor. 316 stainless steel gypsy. Chain and rope on a single gypsy. Manual chain release. Optional FAST FIT motor-reducer (quick and easy installation).

Data of interest

TECHNICAL DESCRIPTION
  • The motor operates at a power of 700W.
  • Operates at 12V.
  • Recommended circuit breaker at least 90 AMP.
  • The model V1 fits calibrated chains 6mm. It has a Rope Diameter of 12-14mm and a Hoisting Speed of 19m/min
  • The product weighs 19Kg
  • The Maximum Load it can withstand is 750Kg.
  • It has a Working Load of 188kg for efficiently lifting the anchor.
  • For vessels up to 14m.
