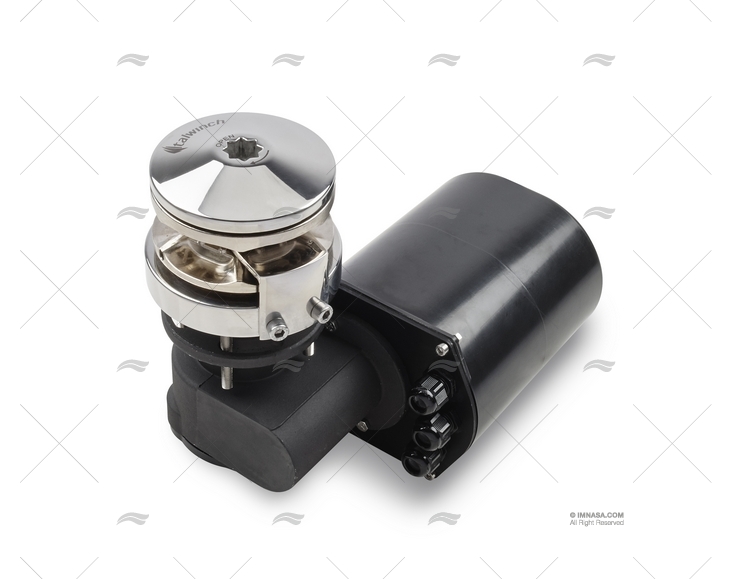

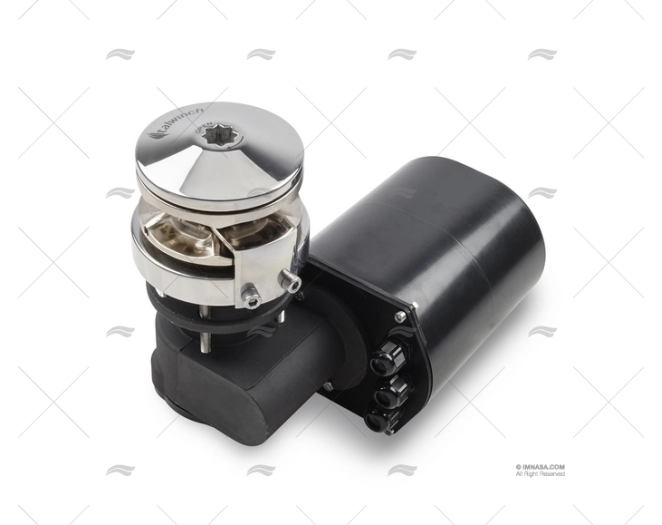

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 35240826 OEM (R3_1024_08L)
SMART R3 WINDLASS 24V 1000W W/OB 08mm ITALWINCH
Available
Product details
-
Name
Windlasses
-
Model
Smart - R3
-
Material
Aluminum, S.S. AISI 316L
-
Power (W)
1000
-
Chain (mm)
8
-
Boat Length (m)
11-16
-
Position
Vertical
-
Voltage (V)
24
Related products
-
Ref. 35240775
SMART WINDLASS 12V 500W W/O BELL 06mm ITALWINCH
/ ITALWINCH
€661.99 -
Ref. 35240777
SMART WINDLASS 12V 700W W/O BELL 06mm ITALWINCH
/ ITALWINCH
€678.34 -
Ref. L6670011108
WINDLASS V-700 12V 6mm LEWMAR
/ LEWMAR
€812.44 -
Ref. 35240797
SMART V WINDLASS 12V 500W W/O BELL 06mm ITALWINCH
/ ITALWINCH
€1,044.94 -
Ref. L6657011198
WINDLASS PRO-SERIES 1000G 12V 8mm LEWMAR
/ LEWMAR
€1,404.73 -
Ref. 35240779
SMART WINDLASS 12V 1000W W/O BELL 08mm ITALWINCH
/ ITALWINCH
€1,059.90 -
Ref. 35240799
WINDLASS KIT SMRT 12V 500W W/O BELL 6mm ITALWINCH
/ ITALWINCH
€793.77 -
Ref. 35240801
SMART PLUS WINDLASS 12V 1000W W/OB 08mm ITALWINCH
/ ITALWINCH
€1,241.90 -
Ref. L6656011967
WINDLASS PRO-SERIES 700G 12V 6-7mm-1/4 LEWMAR
/ LEWMAR
€1,234.10 -
Ref. 35240751
WINDLASS DEVON 12V 1500W W/BELL 10mm ITALWINCH
/ ITALWINCH
€1,765.87 -
Ref. 35240816
SMART R1 WINDLASS 12V 500W W/OB 06mm ITALWINCH
/ ITALWINCH
€779.75 -
Ref. 35240778
SMART WINDLASS 12V 700W W/BELL 06mm ITALWINCH
/ ITALWINCH
€767.24 -
Ref. 35240737
WINDLASS OBI-500 12V 500W W/OUT DRUM 6 ITALWINCH
/ ITALWINCH
€810.58 -
Ref. 35240749
WINDLASS DEVON 12V 1000W W/BELL 08mm ITALWINCH
/ ITALWINCH
€1,729.45 -
Ref. 35240817
SMART R1 WINDLASS 12V 700W W/OB 06mm ITALWINCH
/ ITALWINCH
€852.59 -
Ref. 35240738
WINDLASS OBI-500 12V 700W W/OUT DRUM 6M ITALWINCH
/ ITALWINCH
€862.86 -
Ref. L6671011196
WINDLASS V1 G 12V 700W RC 6mm LEWMAR
/ LEWMAR
€1,570.34 -
Ref. 35240805
SMART PLUS WINDLASS 12V 1500W W/OB 10mm ITALWINCH
/ ITALWINCH
€1,536.14 -
Ref. 35240815
SMART V WINDLASS 12V 800W W/O BELL 06mm ITALWINCH
/ ITALWINCH
€1,084.18 -
Ref. L6656811196
WINDLASS PRO-SPORT 551 LEWMAR
/ LEWMAR
€1,026.14 -
Ref. 35240820
SMART R1 WINDLASS 12V 1000W W/OB 08mm ITALWINCH
/ ITALWINCH
€1,075.77 -
Ref. 35240803
SMART PLUS WINDLASS 12V 1000W W/B 08mm ITALWINCH
/ ITALWINCH
€1,347.52 -
Ref. 35240807
SMART PLUS WINDLASS 12V 1500W W/B 10mm ITALWINCH
/ ITALWINCH
€1,582.84 -
Ref. 35240781
SMART WINDLASS 12V 1000W W/BELL 08mm ITALWINCH
/ ITALWINCH
€1,155.14 -
Ref. 35240839
IKI PRO WINDLASS 12V 500W W/O DRUM 06mm ITALWINCH
/ ITALWINCH
€1,176.63
Product description
Data of interest
- Electric windlass with horizontal, bell-less motor in AISI 316L marine-grade stainless steel.
- The motor delivers a power of 1000 W at 24 V.
- Minimum recommended circuit breaker: 60 A.
- The Smart R3 model fits 8 mm calibrated anchor chain and has a lift speed of 25 m/min.
- Weight 15.8 kg.
- Maximum breaking load: 940 kg.
- Working load for efficient anchor retrieval: 130 kg.
- Suitable for vessels of 11–16 metres.
