Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. L6672011198-138 OEM (6672011198-138)

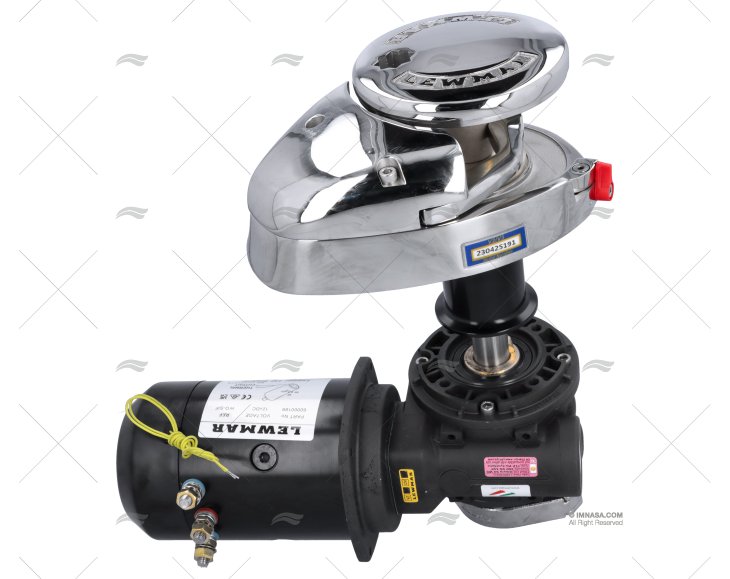

WINDLASS KIT V2 12V 700W W/O BELL 8mm LEWMAR
€2,083.33
VAT included
Available
Choose another model
Product details
-
Name
Windlasses
-
Model
V2 Fast-Fit
-
Power (W)
700
-
Chain (mm)
8
-
Boat Length (m)
To 14
-
Position
Vertical
-
Voltage (V)
12
Product description
Lewmar V2 FAST-FIT electric windlass for boat with horizontal motor. 316 stainless steel head. Chain and rope on a single gypsy. Manual chain release. Optional FAST FIT gearbox-motor (Quick and easy installation).
Data of interest
TECHNICAL DESCRIPTION — Compact anchor windlass 700–900 W, 12/24 V, 320 kg max load, optimized for rope and calibrated chain for 6–10.5 m boats.
- The motor delivers a power of 700 and 900 W and operates at 12 or 24 V.
- Recommended minimum circuit breaker 45 A.
- The V700 model fits calibrated chains 6/7 mm, accepts rope diameter 12 mm and has a lift speed of 25 m/min.
- Weight 6.5 kg.
- Maximum breaking load 320 kg and working load 79 kg for efficient anchor retrieval.
- Suitable for vessels from 6 to 10.5 m.
