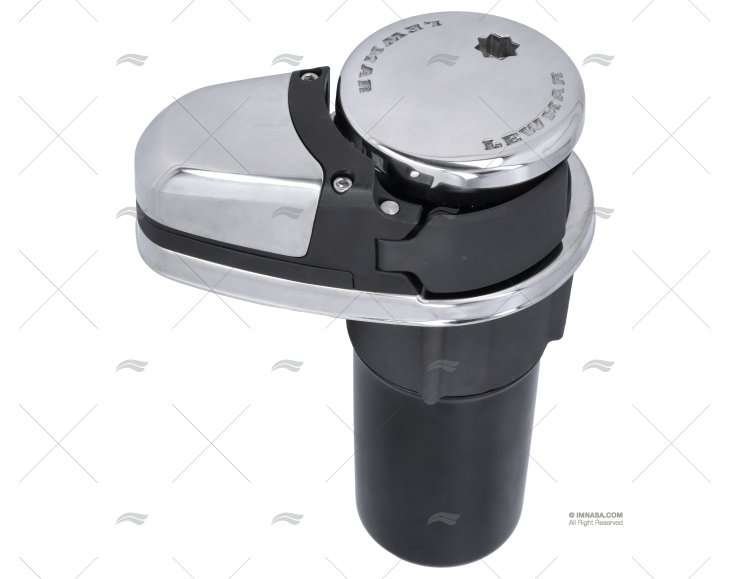

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. L69100050 OEM (69100050)
WINDLASS KIT VX1L 12V 500W W/RELAY 6/7mm LEWMAR
€1,226.71
VAT included
Available
Choose another model
Product details
-
Name
Windlasses
-
Model
VX1L
-
Material
S.S.
-
Power (W)
500
-
Chain (mm)
6/7
-
Boat Length (m)
6-11
-
Position
Vertical
-
Voltage (V)
12
Product description
The Lewmar VX1L windlass for boats is equipped with an inline motor and a planetary gearbox combined with a small, compact, and efficient motor, without compromising performance and freeing up space below decks. Easy-to-install single-piece compact unit. Motor housing with P67 rating standard. Supplied with "Hybrod Gypsy" sheave for improved chain grip/pull. Manual clutch release. Drum option. Sleek stainless steel and durable composite construction. Same footprint as the V700 model.
Data of interest
TECHNICAL DESCRIPTION
- Anchor windlass motor rated at 500 W and 12 V — robust hoisting solution for yachts.
- Recommended minimum thermal-magnetic circuit breaker 70 AMP.
- The VX1L model fits calibrated anchor chains of 6/7 mm and provides a hoisting speed of 20 m/min.
- Maximum working load 650 kg.
