Ref. L69100020 OEM (69100020)
WINDLASS KIT VX1 12V 300W W/RELAY 6/7mm LEWMAR
€1,005.79
VAT included
Available
Choose another model
Product details
-
Name
Windlasses
-
Model
VX1
-
Power (W)
300
-
Chain (mm)
6/7
-
Boat Length (m)
6-15
-
Position
Vertical
-
Voltage (V)
12
Product description

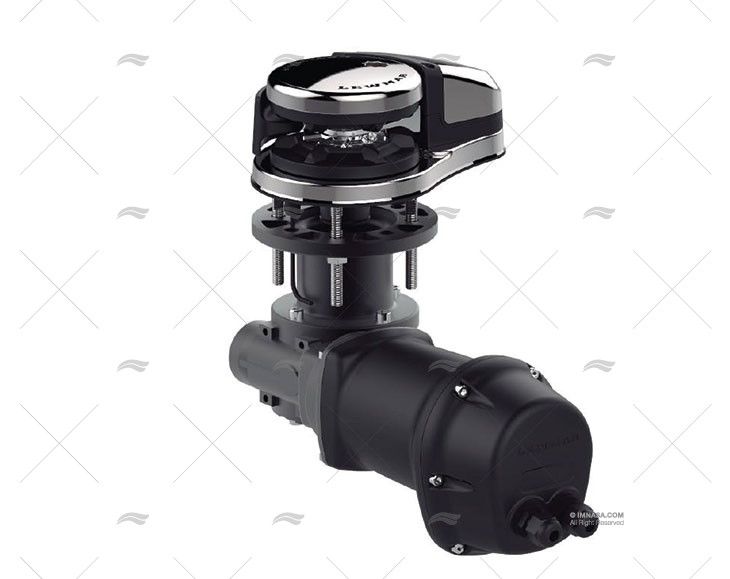

Elegant Lewmar VX1 windlass featuring stainless steel and composite construction. Supplied with a “Hybrid Gypsy” drum for better chain grip/pull. Highly durable. VX1 - Sturdy worm wheel gearbox. Same footprint as the V1 model. Kit includes: Deck unit, drum/bell, motor, and relay. Standard IP67 cover.
Data of interest
TECHNICAL DESCRIPTION - Compact 300 W anchor windlass for 6–15 m boats, chain 6/7 mm, 400 kg max load.
- The windlass motor delivers 300 W at 12 V.
- Recommended minimum magnetic circuit breaker 50 A.
- Model VX1 fits calibrated chains of 6/7 mm and has a lift speed of 25 m/min.
- Can withstand a maximum load of 400 kg.
- Suitable for vessels from 6 to 15 m.
