WINDLASS KIT V3 12V 1000W W/O BELL 8mm LEWMAR
WINDLASS KIT V3 12V 1000W W/O BELL 8mm LEWMAR

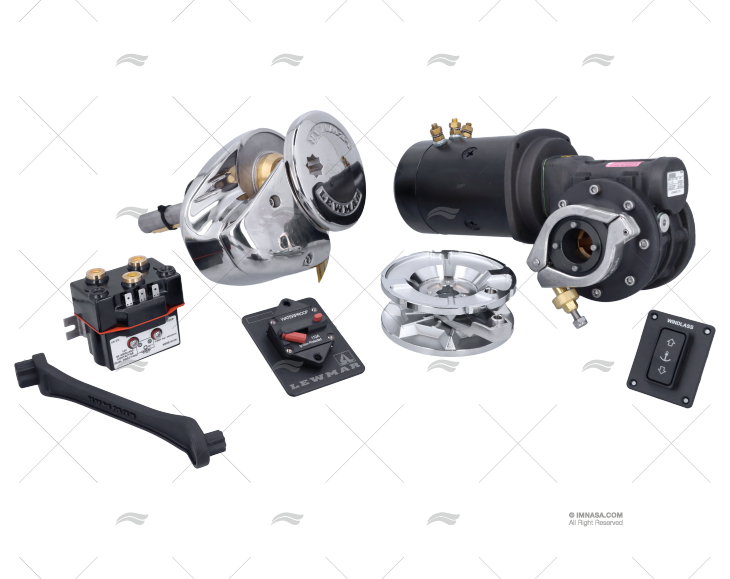

Information Illustrative photo

Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.

LEWMAR

Ref. L6672211198-139 OEM (6672211198-139)

WINDLASS KIT V3 12V 1000W W/O BELL 8mm LEWMAR

€1,784.69
VAT included

Expected shortly (approx. 7 days)

Choose another model
  • Ref L6672222110-142 WINDLASS KIT V3 24V 1000W W/BELL 10mm LEWMAR
    Available
    €2,272.55
  • Ref L68000828 DECK UNIT V2/3 FAST FIT LEWMAR
    Not available - (Available on request)
    €886.02
  • Ref L68000829 UPPER FULL PART OF WINDLASS V2/V3 LEWMAR
    Available
    €998.84
  • Ref L68000815 MOTOR GEARBOX V3 12V FAST FIT LEWMAR
    Available
    €1,829.79
  • Ref L68000816 MOTOR GEARBOX V3 24V LEWMAR
    Available
    €1,829.79

Product details

  • Name

    Windlasses

  • Model

    V3 Fast-Fit

  • Power (W)

    1000

  • Chain (mm)

    8

  • Boat Length (m)

    To 14

  • Position

    Vertical

  • Voltage (V)

    12

Product description

Lewmar V3 FAST-FIT electric windlass with horizontal motor. 316 stainless steel gypsy head. Chain and rope on a single drum. Manual chain release. Optional FAST FIT gearbox (Quick and easy installation).

Data of interest

TECHNICAL DESCRIPTION
  • The engine operates at a power of 1000W.
  • Works at 12 and 24V.
  • Recommended minimum magnetothermic 50 and 90 AMP.
  • The V3 model adapts to calibrated chains 8 and 10mm. It has a Rope Diameter of 12-16mm and a Hoisting Speed of 28 and 30m/min.
  • Product weight is 21.5 and 24.5Kg
  • The Maximum Load it can withstand is 1025Kg.
  • Has a Working Load of 257kg for efficient anchor retrieval.
  • For boats up to 14m.
