Ref. L69100054 OEM (69100054)

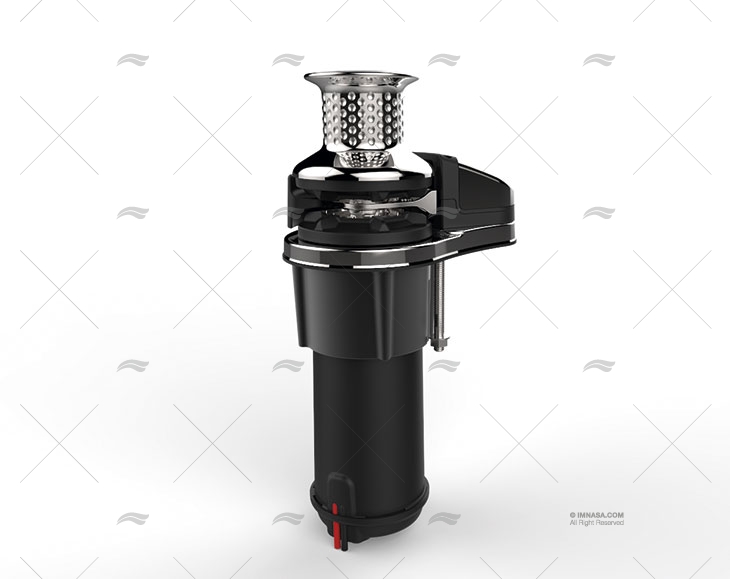

WINDLASS KIT VX1L 12V 500W W/DRUM 6/7mm LEWMAR
€916.33
VAT included
Available
Choose another model
Product details
-
Name
Windlasses
-
Model
VX1L
-
Material
Inox
-
Power (W)
500
-
Chain (mm)
6/7
-
Boat Length (m)
6-11
-
Position
Vertical
-
Voltage (V)
12
Product description
The Lewmar VX1L Boat Windlass is equipped with an inline motor and an epicyclic gearbox that combines with a small, compact, and efficient motor without compromising performance, freeing up space below decks. The VX1L offers a maximum pull of 920 kg, providing solid performance and robust design for boats up to 36 feet. Kit composed of: deck unit, gypsy/capstan, motor, and relay.
Data of interest
TECHNICAL DESCRIPTION
- Anchor windlass motor rated at 500 W and 12 V — robust hoisting solution for yachts.
- Recommended minimum thermal-magnetic circuit breaker 70 AMP.
- The VX1L model fits calibrated anchor chains of 6/7 mm and provides a hoisting speed of 20 m/min.
- Maximum working load 650 kg.
