Ref. 52203349 OEM (2203349 + 2200017)
COMPLETE STEERING KIT LS 125 PRO 10m LECOMBLE SCHMITT
€975.67
VAT included
Available
Choose another model
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
125
Product description

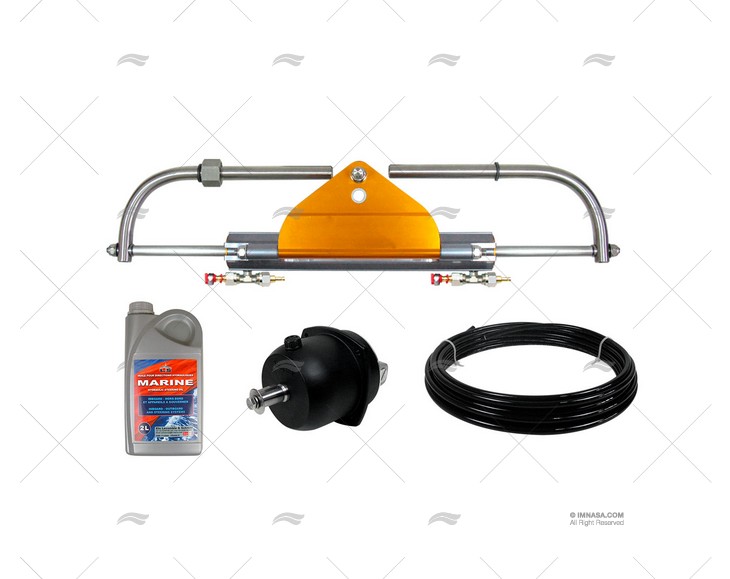

Lecomble and Schmitt LS 125 PRO hydraulic steering kit for outboard motors up to 125Hp (200Hp for twin-engine counter-rotation setup). The number of turns is 5.4 from port to starboard. The maximum speed is 40 knots. For Suzuki 40/50 HP engines, consult your dealer. The kit consists of a piston with fittings, a pump with fittings, 10m of hose, and 2 liters of oil.
Data of interest
TECHNICAL DESCRIPTION
- The rated power of the marine steering hydraulic piston VHM EX125 is 115 Hp with a displacement of 107 cc.
- The hydraulic cylinder stroke under pressure is 212 mm.
- The marine steering hydraulic pump 20HB CAR has a casing volume of 400 cm3 and a displacement of 20 cm3/rev.
- The maximum diameter of the helm wheel is 520 mm.
- The hydraulic line length is 10 m.
