Ref. 52200800 OEM (2201757 + 2200017)
COMPLETE STEERING KIT O/B TO 115HP LECOMBLE SCHMITT
€1,018.72
VAT included
Available
Choose another model
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
115
Product description

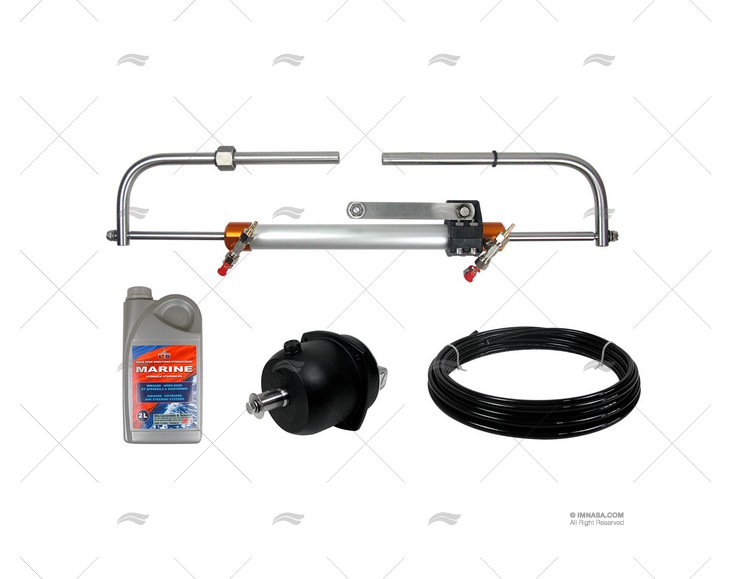

Lecomble and Schmitt LS 226 hydraulic steering kit for outboard engines with power up to 115Hp (180Hp for dual counter-rotating systems). The number of turns is 4.8 from port to starboard. The kit consists of a hydraulic pump model 20HB CAR + fittings, piston model VHM 226 + fittings, 10 meters of 6mm tubing and 2 liters of hydraulic oil.
Data of interest
TECHNICAL DESCRIPTION
- The piston power of the steering actuator is 115 Hp with a displacement of 70 cc.
- The hydraulic cylinder stroke (actuator travel) is 206 mm.
- The hydraulic pump 20 HB CAR has a capacity of 400 cm3 and a displacement of 20 cm3/rev.
- The maximum diameter of the ship's wheel (helm) is 520 mm.
- The hose/pipe length is 10 m and its minimum bore should be 6 mm.
