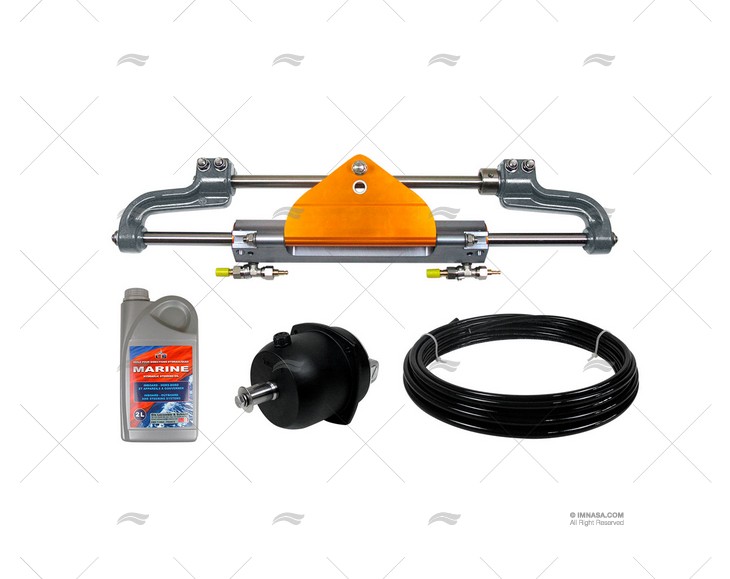

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 52203351 OEM (2203351 + 2200017)
COMPLETE STEERING KIT LS 225 PRO 10m LECOMBLE SCHMITT
€1,161.65
VAT included
Available
Choose another model
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
225
Better option
Product description
Lecomble and Schmitt LS 225 PRO hydraulic steering kit for outboard engines up to 225 HP. (400 HP for dual engines with counter-rotation). The number of turns from port to starboard is 4.9. The kit includes a piston with fittings, a pump with fittings, 10m of hose, and 2 liters of oil.
Data of interest
TECHNICAL DESCRIPTION — Marine hydraulic steering unit: piston VHM EX225 225 Hp (127 cm3), 210 mm cylinder stroke, hydraulic pump 26 HYB CAR 400 cm3 (26 cm3/rev), helm wheel Ø 520 mm, hose length 10 m
- The horsepower of the piston VHM EX225 is 225 Hp and it has a displacement of 127 cm3.
- The cylinder stroke under hydraulic pressure is 210 mm.
- The hydraulic pump 26 HYB CAR has a volume of 400 cm3 and a displacement of 26 cm3/rev.
- The maximum diameter of the helm wheel is 520 mm.
- The hose length is 10 m.
