Ref. 52203577 OEM (2203577 + 2200017)
COMPLETE STEERING KIT LS 700 PRO LECOMBLE SCHMITT
€2,232.11
VAT included
Available
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
700
Product description

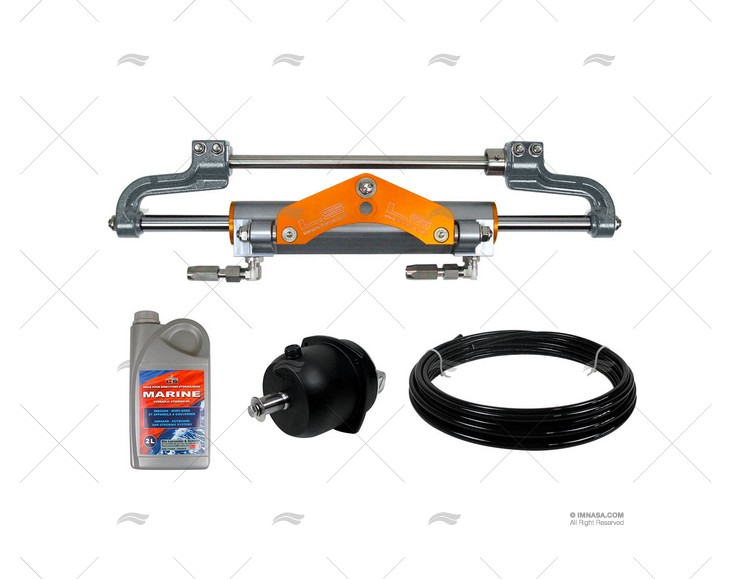

Lecomble and Schmitt LS 7000 PRO hydraulic steering kit for mounting twin outboard engines up to 700 HP. Turns from port to starboard 7.5. The kit includes a 26HB CAR hydraulic pump + fittings, VHM EX 3500 PRO hydraulic cylinder + stainless steel fittings, 10-meter 8mm flexible steering hose, a tie bar, and a 2-liter hydraulic oil can.
Data of interest
TECHNICAL DESCRIPTION
- The power of the VHM EX3500 PRO piston is 350Hp, with a volume of 198cm3.
- The stroke of the cylinder by hydraulic pressure is 210mm.
- The 30HB CAR hydraulic pump has a volume of 400 cm3 and a displacement of 20 cm3/rev.
- Contains a 10m high-pressure tubing, with a minimum size of 8mm.
- The maximum diameter of the rudder wheel is 520mm.
