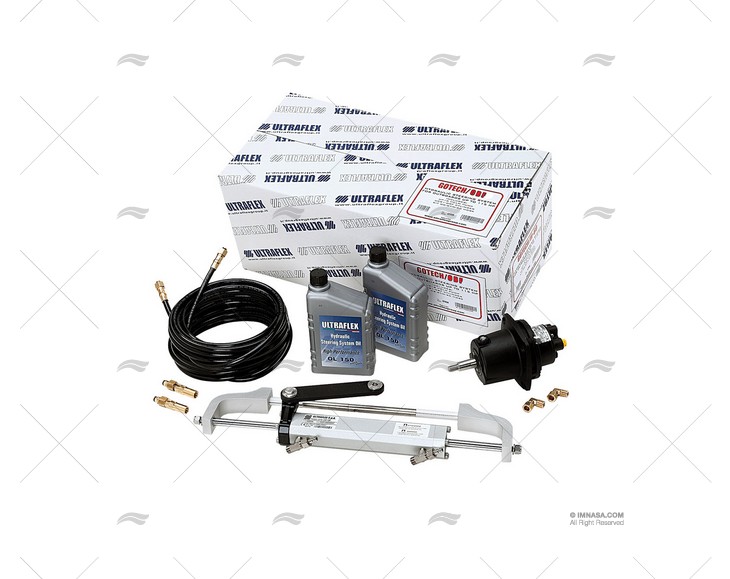

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 51250315 OEM (42634G)
STEERING KIT UF FB 115HP TUBE 60 ULTRAFLEX
€960.38
VAT included
Available
Choose another model
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
115
Better option
Product description
Outboard hydraulic steering kit with power for engines up to 115Hp. The number of turns is 4.5 from port to starboard. The GOTECH-OBF package contains: Mid-mount helm pump UP18, front-mount external cylinder UC81-OBF, 2 liters of hydraulic oil OL 150.
Data of interest
Marine steering unit: 115 Hp piston power, 81 cc displacement, 27.4 mm bore; 186 mm hydraulic cylinder stroke.
- Piston horsepower is 115 Hp, with a displacement of 81 cc and an internal bore of 27.4 mm (1.08'').
- The cylinder stroke actuated by hydraulic pressure is 186 mm.
- Mid-mount steering pump model UP18 with built-in lock valve.
- Steering wheel NOT included.
