Ref. 51250317 OEM (42889T)
STEERING KIT UF FB 300HP TUBE 90 ULTRAFLEX
€1,533.55
VAT included
Available
Choose another model
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
300
-
Stroke (mm)
185
Product description

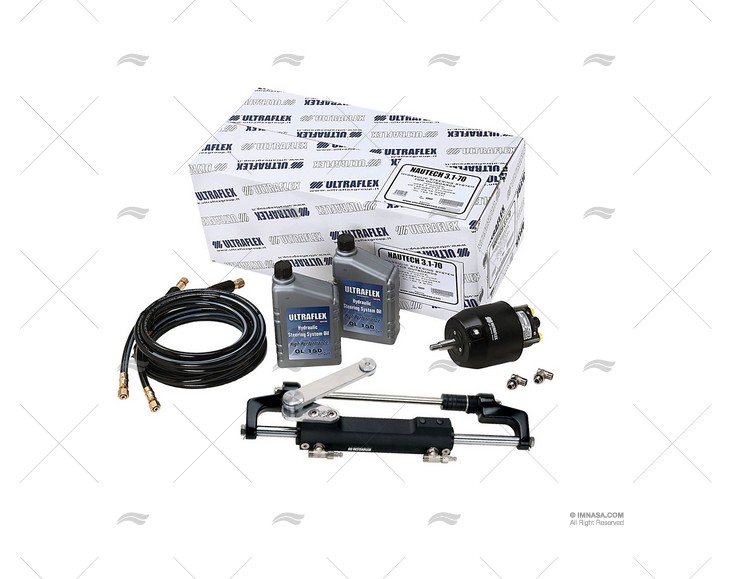

Ultraflex NAUTECH-1/M90 outboard hydraulic steering kit with power for engines up to 300 HP. Number of turns from port to starboard is 4.3. The kit consists of a front mount helm pump model UP28F, external cylinder UC128-OBF, and 2 liters of hydraulic oil OL 150.
Data of interest
TECHNICAL DESCRIPTION — Marine hydraulic gear: hydraulic ram UC128-OBF/1 300 HP, 120 cm3; pump UP28F 70 bar 28 cm3/rev.
- The power rating of the hydraulic ram UC128-OBF/1 is 300 HP with a displacement of 120 cm3.
- The hydraulic ram stroke under pressure is 185 mm.
- The hydraulic pump UP28F has a maximum pressure of 70 bar and a displacement of 28 cm3/rev.
- The maximum helm wheel diameter is 710 mm.
