Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 13140132
KIT DIREC.HYD. FB UP TO 115HB 10m TUBE RIVIERA
€886.25
VAT included
Available
Choose another model
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
115
-
Stroke (mm)
200
-
Minimum Pipeline
10m
Product description

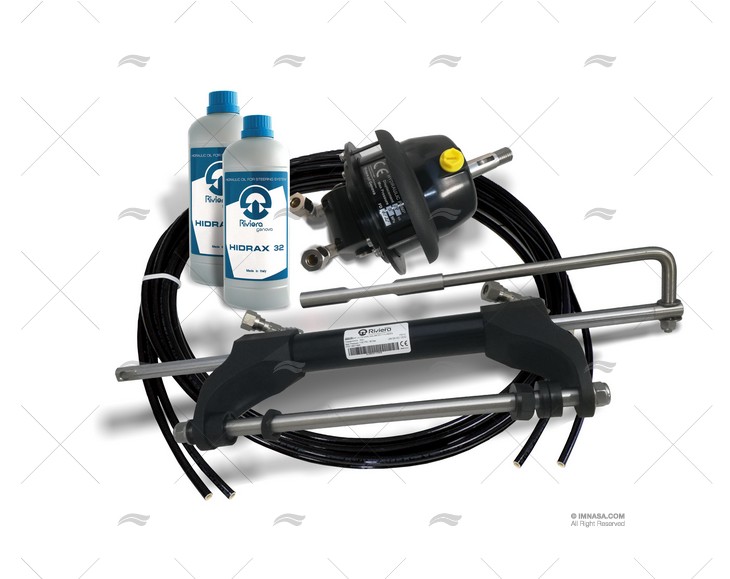

Riviera FB115 hydraulic steering kit for outboard engines up to 115 HP. Featuring six turns from port to starboard. The kit includes a piston with fittings, a pump with fittings, 10m of tube, and 2 liters of hydraulic oil. Front mount.
Data of interest
Marine technical specs: hydraulic piston 115 Hp (120 cm3), 200 mm stroke, pump 19 cm3/rev, max 50 bar, 10 m high-pressure hose.
- The piston horsepower is 115 Hp, with a displacement of 120 cm3.
- The hydraulic cylinder stroke is 200 mm.
- The hydraulic pump with a non-return valve has a displacement of 19 cm3/rev.
- The maximum pressure the pump can reach is 50 bar.
- Includes a 10 m high-pressure hose.
