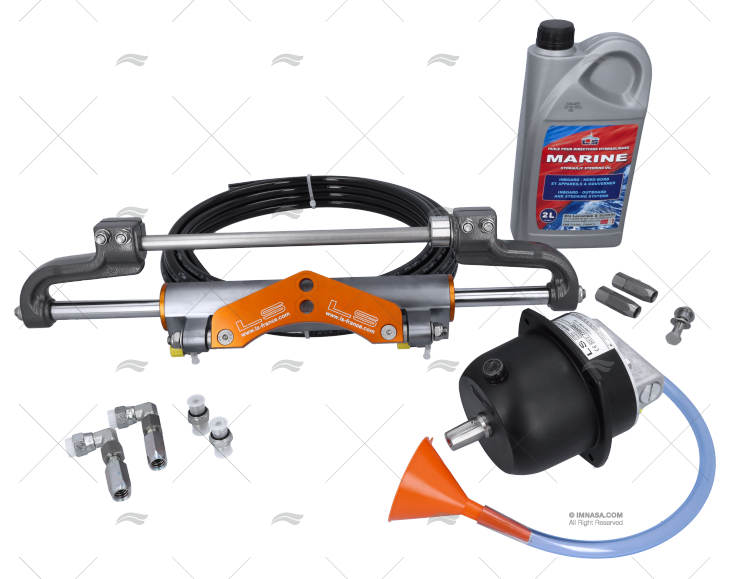

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 52203576 OEM (2203576 + 2200017)
STEERING KIT LS350 PRO LECOMBLE SCHMITT
€1,462.78
VAT included
Available
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
350
Product description
Outboard hydraulic steering kit suitable for engines up to 350Hp. Port to starboard turns: 6.5. The kit includes a 30HB hydraulic pump with check valve + fittings, a VHM EX 3500 PRO hydraulic piston + stainless steel fittings, a flexible steering tube of 10 meters with 8mm diameter, and a 2-liter container of hydraulic oil.
Data of interest
TECHNICAL DESCRIPTION
- The horsepower of the VHM EX3500 PRO piston is 350Hp, with a volume of 198cm3.
- The stroke of the cylinder by hydraulic pressure is 210mm.
- The hydraulic pump 30HB CAR has a volume of 400 cm3 and a displacement of 29 cm3/revolution.
- Contains a 10m high-pressure tubing, with a minimum size of 8mm.
- The maximum diameter of the steering wheel is 520mm.
