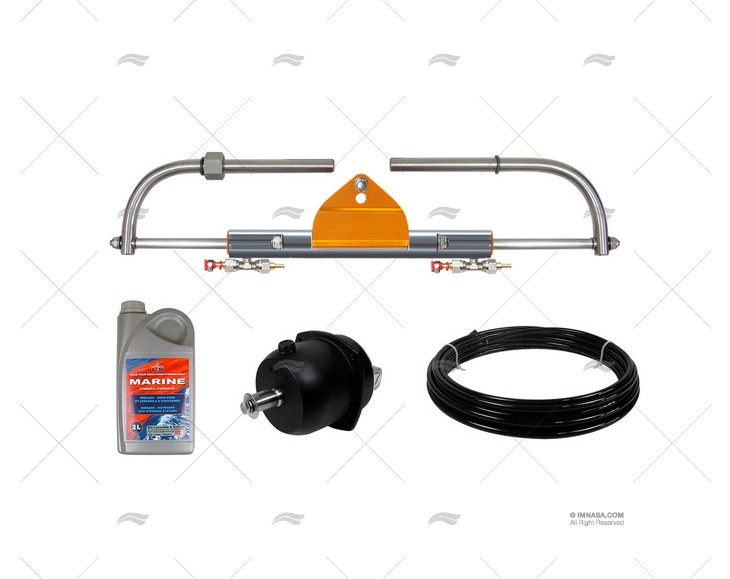

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 52203348 OEM (2203348 + 2200017)
HYDRAULIC STEERING BOAT KIT LS80 PRO LECOMBLE SCHMITT
€930.50
VAT included
Available
Choose another model
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
80
Product description
Lecomble and Schmitt LS 80 PRO hydraulic steering kit for outboard motors up to 80 HP. The number of turns from port to starboard is 3.5 and maximum speed is 40 knots. For Suzuki 40/50 HP engines, please consult your dealer. The kit consists of a piston with VHM EX80 fittings, a pump with 20HB CAR fittings, 10m/6mm hose, and 2 liters of hydraulic oil.
Data of interest
TECHNICAL DESCRIPTION
- The horsepower of the piston is 80Hp, with a volume of 70cc.
- The cylinder stroke by hydraulic pressure is 206mm.
- The 20HB CAR hydraulic pump has a volume of 400 cm3 and a displacement of 20 cm3/rev.
- The maximum diameter of the steering wheel is 520 mm.
- Contains a pipeline with a length of 10m and a diameter of 6mm.
