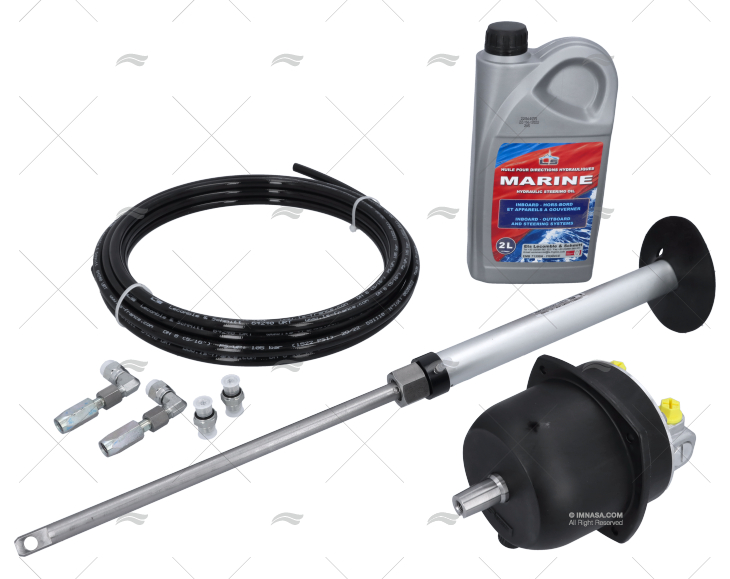

Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 52200951 OEM (2200951+2200017)
STEERING KIT O/B 175HP LS26A LECOMBLE SCHMITT
€1,015.43
VAT included
Available
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
175
Product description
Lecomble and Schmitt LS 26 A hydraulic steering kit for side mount outboard engines up to 175 HP. The number of turns from port to starboard is 4. The kit includes a VHM 28 ST HB piston with fittings, a 26HB CAR pump with fittings, 10m of 8mm tubing, and 2 liters of oil.
Data of interest
TECHNICAL DESCRIPTION
- The horsepower of the VHM 28 ST HB piston is 175Hp, with a weight of 1.4kg.
- The cylinder stroke by hydraulic pressure is 206mm.
- The 26HB CAR hydraulic pump has a volume of 400 cm3 and a displacement of 20 cm3/revolution.
- The maximum diameter of the steering wheel is 520 mm.
- The length of the tubing is 10m and its size should be at least 8mm.
