Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 52201327 OEM (2201327+2200017)
STEERING KIT O/B 300HP LECOMBLE SCHMITT
€1,112.50
VAT included
Available
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
300
Product description

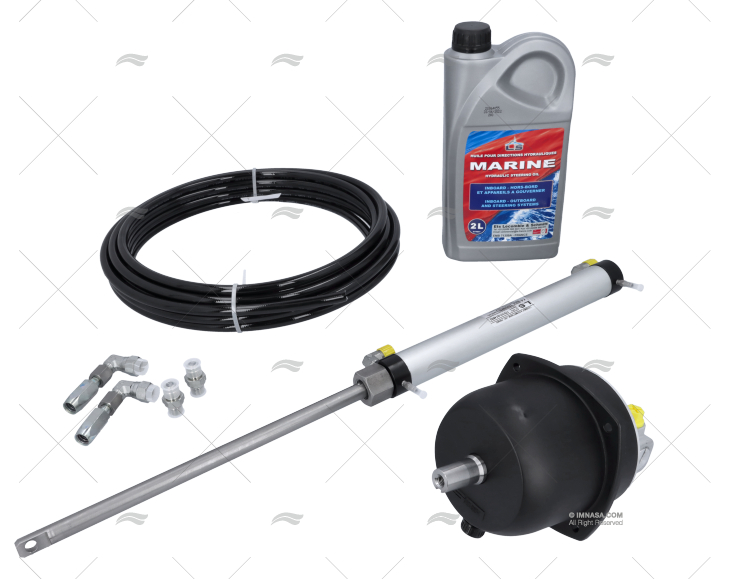

Lecomble & Schmitt LS 32 HB side mount hydraulic steering kit for outboard engines up to 300 HP. Number of turns from port to starboard: 4.2. The kit includes a VHM 32 ST HB piston with fittings, a 30 HB pump with fittings, 8m of tubing, and 2 liters of oil.
Data of interest
TECHNICAL DESCRIPTION
- The engine horsepower of the piston is 300Hp, with a weight of 1.4kg.
- The 30HB CAR hydraulic pump has a volume of 400 cm3, a displacement of 29 cm3/rev, and a weight of 3.4kg.
- The maximum diameter of the steering wheel is 520 mm.
- The pipeline length is 10m, and its size should be at least 8mm.
