Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 13140108
KIT DIREC.HID. FB UP TO 250HP 10m TUB RIVIERA
€1,248.85
VAT included
Available
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
250
Product description

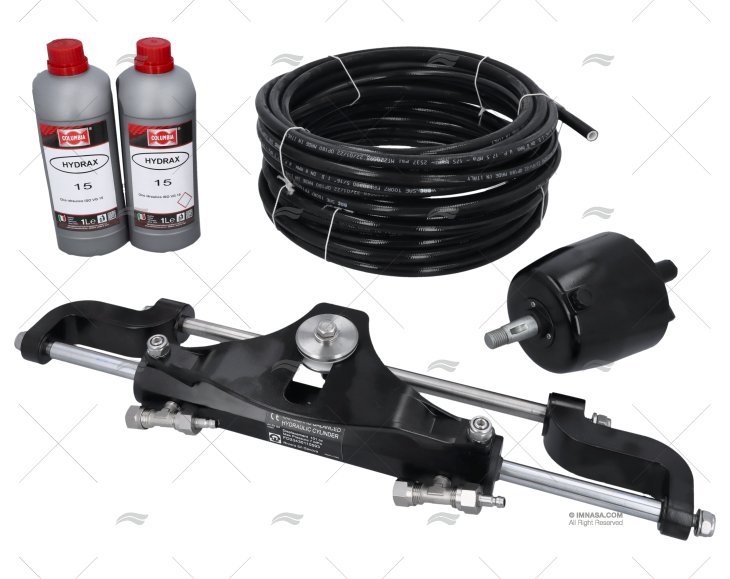

Riviera FB250 hydraulic steering kit powered for outboard engines up to 250 Hp. 3.7 turns from port to starboard. The Green Star Kit contains hydraulic pump model T103-28SI + fittings, hydraulic piston model ATI2-101 + fittings, 10 meter 5/16" flexible steering hose and 2-liter hydraulic oil can.
Data of interest
TECHNICAL DESCRIPTION
- The horsepower of the ATI2-101 piston is 250Hp, with a volume of 100cm3.
- The stroke of the cylinder by hydraulic pressure is 200mm.
- The T103-28SI hydraulic pump with non-return valve has a displacement of 28cm3/rev.
- The maximum pressure the pump can reach is 70 Bars.
- Contains 10m piping for high pressure.
