Ref. 51250316 OEM (43658C)
STEERING KIT UF FB 175HP TUBE 90 ULTRAFLEX
€1,276.65
VAT included
Available
Choose another model
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
175
Product description

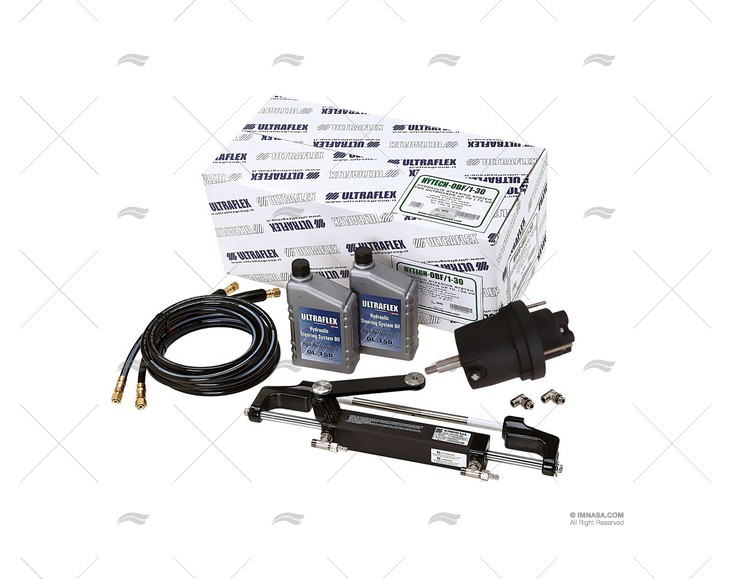

Ultraflex HYTECH-OBF/M90 outboard hydraulic steering kit for engines up to 175Hp. The number of turns is 4.7 from port to starboard. The HYTECH-OBF package includes: UP20F front mount helm pump, external front mount cylinder UC95-OBF, 2 liters of hydraulic oil OL150.
Data of interest
TECHNICAL DESCRIPTION
- Piston power 175 Hp, volume 95 cc and inner diameter 30 mm or 1.08'' — hydraulic steering system for vessels.
- Cylinder stroke under hydraulic pressure is 186 mm.
- Mid‑mount helm pump model UP20F, displacement 20 cm3/rev.
- Maximum helm wheel diameter is 508 mm.
- OB/M (90) kit with two hoses and pre‑crimped fittings.
- Also available without flexible hydraulic hoses.
