Illustrative photo
Some product features, such as color or dimensions, may vary in the photo. For more technical information, please refer to the "See product in catalog" section.
Ref. 52201045 OEM (2202224 + 2200017)
STEERING KIT 300HP FRONTAL LECOMBLE SCHMITT
€1,449.04
VAT included
Available
Product details
-
Name
Hydraulic steering kit
-
Model
Outboard
-
Horse power (HP)
300
Product description

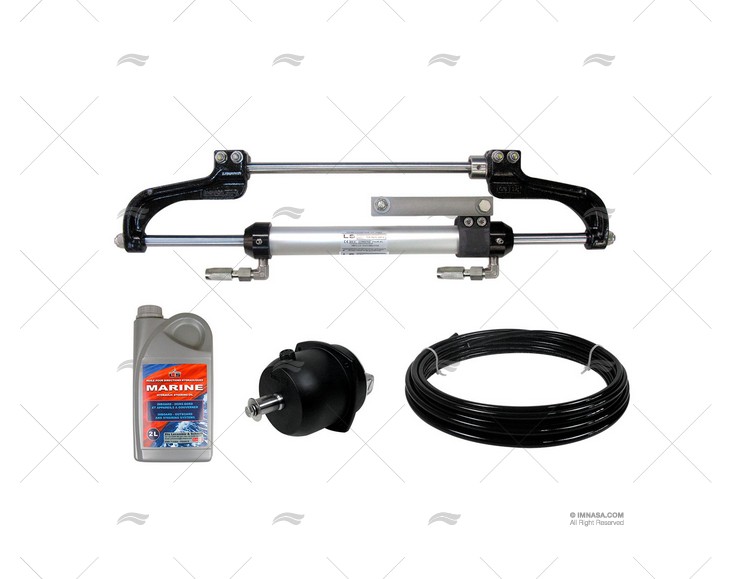

Outboard hydraulic steering kit Lecomble and Schmitt LS 232 C with power for engines up to 300HP (500Hp for dual engine with counter rotation). The number of turns is 4.3 from port to starboard. The kit includes a hydraulic pump model 30HB CAR + fittings, a hydraulic piston model VHM 232 + fittings, 10-meter flexible steering hose of 8mm and a 2-liter drum of hydraulic oil.
Data of interest
TECHNICAL DESCRIPTION
- The horsepower of the VHM EX232 piston is 300Hp, with a volume of 140cm3.
- The stroke of the cylinder through hydraulic pressure is 230mm.
- The 26HB CAR hydraulic pump has a volume of 400 cm3 and a displacement of 29 cm3/revolution.
- The maximum steering wheel diameter is 520 mm.
- The pipe length is 10m, and its size should be at least 8mm.
